LLC Ultra Water Level Controller

Get a Price/Quote

Product Details:

Technology Electronic sensing with relay output
Recycle Rate Up to 98%
Efficiency (%) Over 98%
Feature Auto cut-off, overload protection, dry run protection, LED indicators, manual/auto switch
Power Consumption < 10 Watts
Noise Level Silent operation
Frequency 50Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LLC Ultra Water Level Controller Price And Quantity

Minimum Order Quantity 10 Piece

Relay Output Capacity 16A Max Load
Safety Features Short circuit and overvoltage protection
Sensor Type Stainless steel electrode sensors
Mounting Accessories Supplied with mounting clamps and installation guide
Compliance Conforms to ISI standards
Operating Temperature Range 0C to 65C
Dimensions 120mm x 75mm x 55mm (approx.)
Control Type Microcontroller-based electronic circuit
Display Indicators LED for power, level indication, pump ON/OFF

LLC Ultra Water Level Controller Product Specifications

Recycle Rate Up to 98%
Flow Rate Depends on pump rating
Product Type Water Level Controller
Automatic Grade Automatic
Efficiency (%) Over 98%
Technology Electronic sensing with relay output
Material ABS plastic enclosure
Water Out Conductivity 35-40 S/cm
Pump Type Compatible with submersible and monoblock pumps
Noise Level Silent operation
Voltage 230V AC, 50Hz
Installation Type Wall-mounted
Drive Type Electrical relay
Frequency 50Hz
Power Source Electric
Capacity Multiple tank capacity supported
Water in conductivity Up to 2000 S/cm
Feature Auto cut-off, overload protection, dry run protection, LED indicators, manual/auto switch
Power Consumption < 10 Watts
Water Source Overhead tank, ground water, municipal water supply
Usage & Applications Automatic water level management for residential, commercial, and industrial tanks

Relay Output Capacity 16A Max Load
Safety Features Short circuit and overvoltage protection
Sensor Type Stainless steel electrode sensors
Mounting Accessories Supplied with mounting clamps and installation guide
Compliance Conforms to ISI standards
Operating Temperature Range 0C to 65C
Dimensions 120mm x 75mm x 55mm (approx.)
Control Type Microcontroller-based electronic circuit
Display Indicators LED for power, level indication, pump ON/OFF

LLC Ultra Water Level Controller Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 500 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

FEATURES

Latest MicroController based Technology
PULSE technology for Electrolysis free sensing
Controls MOTOR based on overhead and underground tank level
LED indications for water level in tank
Easy to install
Surface mountable
BYPASS toggle switch for Emergency On
Available with SS sensors / Carbon Sensors / Magnetic Sensors / Float Switch

APPLICATIONS

Hotels, Homes, Commercial complexes, Industries

MODEL	DESCRIPTION
LLC-ULTRA-230	SUPPLY-230VAC, Output - 10 Amp Direct Load (1 HP)
LLC-ULTRA-415	SUPPLY-415VAC, Output - 6 Amp Potential Free Com - No Contact

Discover the LLC Ultra Water Level Controller, distinguished by its top-rated, microcontroller-based electronic circuit for crackerjack accuracy in water management. This celebrated device is customizable for multiple tank setups and offers exceptional value with features like stainless steel electrode sensors, auto cut-off, overload, and dry run protection. With a robust ABS plastic enclosure and ISI compliance, it ensures safe operation from 0C to 65C. The controller's efficient relay system supports 16A loads, offers real-time LED indicators, and comes with complete installation accessories for seamless integration.

Highlighted Features and Practical Applications

The LLC Ultra Water Level Controller stands out with extra features such as LED status indicators, manual/auto switch, short-circuit and overload protection, and auto cut-off. Specifically designed for general and specialized use, it fits wall-mounted or custom installations and is crafted from high-grade ABS plastic for durability. Its advanced technology is compatible with various water sources, making it perfect for residential, commercial, and industrial tank management while ensuring low power consumption and silent operation.

Reliable Supply and Accessible Service Nationwide

We guarantee the lowest prices, secure shipping, and express shipping options for the LLC Ultra Water Level Controller across India. Supply ability meets high domestic demand, with sample units available for bulk buyers or demonstration needs. Serving the entire Indian market, our celebrated product ensures every order is delivered quickly and safely, allowing you to experience premium water level management technology with peace of mind. Enjoy prompt response, efficient delivery, and unmatched customer service.

FAQ's of LLC Ultra Water Level Controller:

Q: How does the LLC Ultra Water Level Controller operate with different water sources?

A: The controller is compatible with a range of water sources including overhead tanks, ground water, and municipal supplies thanks to its electronic sensing and adjustable conductivity range. Its stainless steel electrode sensors ensure consistent performance across varied water qualities.

Q: What special safety features does this controller offer?

A: It is engineered with built-in overload, short-circuit, overvoltage, and dry-run protection, safeguarding pumps and electronics. The device also delivers auto cut-off functionality and LED indicators for real-time monitoring and preventive action.

Q: When should I use the manual/auto switch feature?

A: The manual/auto switch is handy during maintenance or unexpected electrical fluctuations, giving you control over pump operation as needed. For consistent automation and minimum intervention, use the auto mode for everyday water management.

Q: Where can the LLC Ultra Water Level Controller be installed?

A: The unit is designed for wall-mounted applications but offers flexible installation options. It's suitable for residential, commercial, and industrial tanks and comes with mounting clamps and a comprehensive installation guide for quick setup.

Q: What is the process for setting up the controller for multiple tanks?

A: The controller supports multiple tank connections through its customizable configuration. Follow the installation guide provided and use supplied accessories to ensure each tank is connected and monitored efficiently. Professional installation is recommended for complex setups.

Q: How does the controller benefit pump performance and energy usage?

A: With its automatic cut-off, overload protection, and high sensing accuracy, the controller optimizes pump usage, minimizing power consumption and prolonging pump lifespan. Its efficiency rates exceed 98%, ensuring sustainable and cost-effective water management.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Water Management Systems' category

Ultiman 415 Automatic Liquid Level Controller Minimum Order Quantity : 10 Technology : Microcontroller Based Material : ABS Plastic Body Product Type : Automatic Liquid Level Controller Automatic Grade : Other, Automatic Efficiency (%) : High Efficiency Power Consumption : <1 Watt Feature : Auto On/Off, Dry Run Protection, Suitable for single phase pumps, Rust proof, Easy installation, Hasslefree operation Usage & Applications : Domestic, Industrial, Commercial, Agricultural water tank automation Water Source : Other, Eligible for borewell, overhead tanks, sumps, wells etc. Pump Type : Applicable for centrifugal, submersible and monoblock pumps Noise Level : Silent Operation Drive Type : Other, Electrical Relay Based Frequency : 50 Hz Power Source : Electric Voltage : 220240V AC Installation Type : Other , Wall Mounted Capacity : Compatible upto 2 HP pump

Send Inquiry

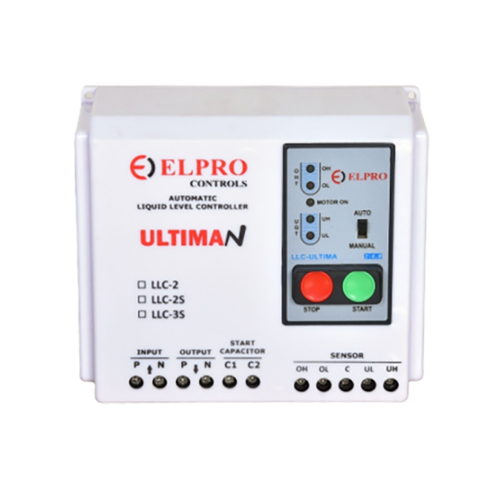

Ultiman 230 Automatic Liquid Level Controller Minimum Order Quantity : 10 Technology : Electronic Sensing Technology Material : ABS Plastic (Housing) Product Type : Automatic Liquid Level Controller Automatic Grade : Other, Automatic Efficiency (%) : High Efficiency Power Consumption : < 2 W Feature : Corrosion Resistance, Maintenance Free, Long Service Life Usage & Applications : Automatic operation of water pumps in overhead/underground tanks Water Source : Other, Overhead and Underground Tanks Pump Type : Compatible with Any Monoblock/ Submersible Pump Noise Level : Silent Operation Drive Type : Other, Electronic Switch Frequency : 50 Hz Power Source : Electric Voltage : 230 V AC Installation Type : Other , Wall Mounted Capacity : Supports Pumps up to 1 HP
