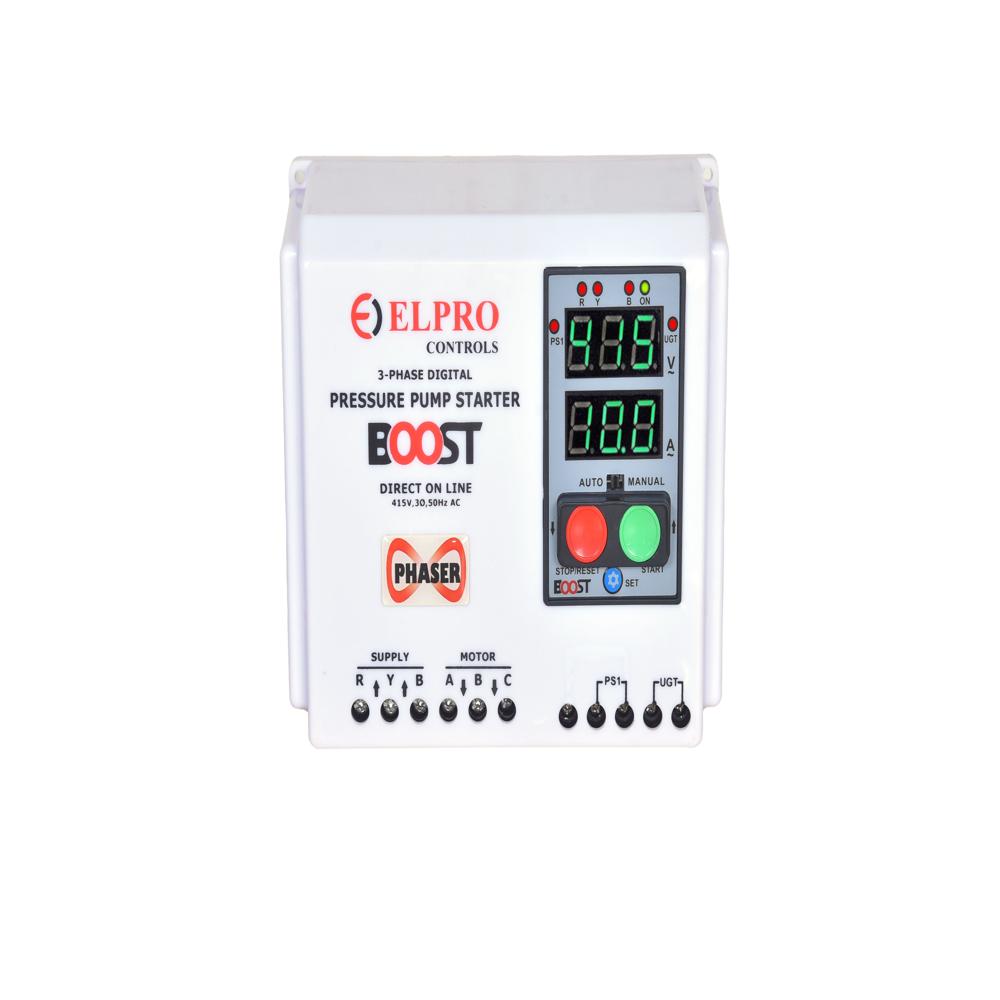

Boost 3 Phase Digital Pressure Pump Starter

Get a Price/Quote

Product Details:

IP Rating IP54
Shape Rectangular
Power Factor >0.95
Efficiency 98%
Feature Digital Display, Auto Restart, Dry Run Protection, User Programmable
Surface Finish Smooth Finish
Mounting Type Wall Mount
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Boost 3 Phase Digital Pressure Pump Starter Price And Quantity

Minimum Order Quantity 10 Piece

Compliance CE Certified
Control Mode Automatic & Manual
Response Time Instant Feedback (<1 sec)
Cable Entry Bottom and Side
Alarm System Buzzer & LED Indication
Programming Touch Button Configurable
Current Rating Up to 32 Amp
Delay Functions Programmable Start/Stop Delay
Display Type LED Digital Display
Input Protection Surge & Phase Sequence Protection

Boost 3 Phase Digital Pressure Pump Starter Product Specifications

Dimension (L*W*H) 215 x 135 x 100 mm
Power Factor >0.95
Efficiency 98%
Output Type Relay Output
Mounting Type Wall Mount
Surface Finish Smooth Finish
Energy Consumption Low Power Consumption
Feature Digital Display, Auto Restart, Dry Run Protection, User Programmable
IP Rating IP54
Application Submersible Pump, Water Pump Automation
Product Type Digital Pressure Pump Starter
Protection Level High (Inbuilt Overload, Short Circuit Protection)
Shape Rectangular
Connection Type Screw Terminal
Size Standard
Overheating Protection YES
Material ABS Plastic
Humidity % 95% RH max (Non Condensing)
Insulation Material FR Grade Plastic
Phase Three Phase
Frequency (MHz) 50 Hz
No Of Poles 3
Connector Type Screw Connector
Color Blue & White
Rated Voltage 415 V AC
Operating Temperature -10C to +50C
Input Voltage 230-415 V AC
Weight 1.5 kg

Compliance CE Certified
Control Mode Automatic & Manual
Response Time Instant Feedback (<1 sec)
Cable Entry Bottom and Side
Alarm System Buzzer & LED Indication
Programming Touch Button Configurable
Current Rating Up to 32 Amp
Delay Functions Programmable Start/Stop Delay
Display Type LED Digital Display
Input Protection Surge & Phase Sequence Protection

Boost 3 Phase Digital Pressure Pump Starter Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 500 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

FEATURES

Superior MCU based technology
Automatic Phase Sequence Corrector (BOOST-PHASER)
3 - Phase VOLT-AMP meter
Operating mode : Auto / Manual
High Voltage Settable
Low Voltage Settable
Overload and Dryrun Trip Time Settable
Fault Protection : High voltage, Low voltage, Voltage single phasing, Phase Reversal (BOOST), Voltage Unbalance, Overload, Dryrun, Current Unbalance, Current single phasing, Motor Short Circuit
Wide operating supply voltage range : 200 VAC to 510 VAC
Amp range : 2 to 25 AMP

APPLICATIONS

For Pressure Pump Protection in Hotels, Homes, Commercial Complexes & Industries

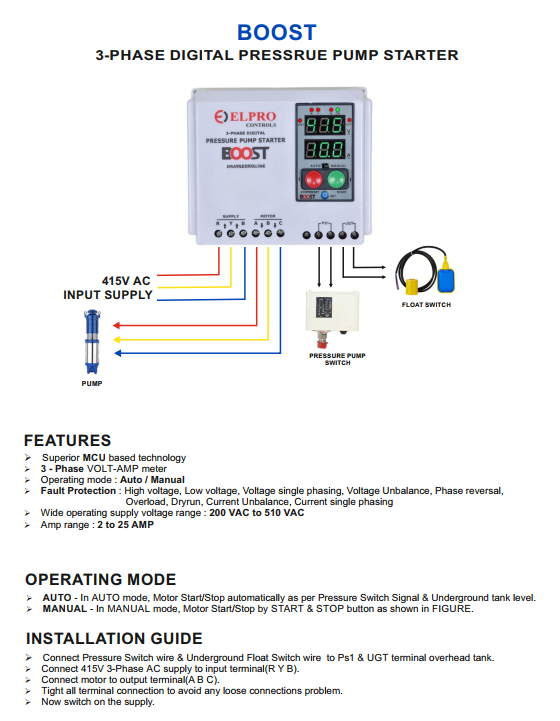

MODEL	DESCRIPTION
BOOST	3-Phase Pressure Pump Starter with Pressure Switch & Underground Tank Signal
BOOST-PHASER	BOOST + Automatic Phase Sequence Corrector

Experience first-class automation and protection with the Boost 3 Phase Digital Pressure Pump Starter, now on Sale! With an extraordinary LED Digital Display and both automatic and manual control modes, this device delivers lavish efficiency for your submersible or water pump needs. Enjoy features like programmable touch-button settings, inbuilt overload, and short circuit protection. Thanks to instant feedback response and a user-friendly alarm system, you'll never miss a beat. CE certified, low consumption, and engineered with a smooth finish for a modern touch. Buy online now and Add to Cart for exceptional reliability!

Versatile Applications and Reliable Usage

The Boost 3 Phase Digital Pressure Pump Starter excels across a wide array of applications-from submersible pumps in agriculture to industrial water pump automation. Its high protection level and customizable delay functions make it suitable for both commercial buildings and manufacturing units. Designed for three-phase systems and robust environmental conditions, this starter ensures precise control and user adaptability, making it a prime choice for demanding environments and critical operational needs.

Domestic Market, Samples, and Packaging Convenience

Boost 3 Phase Digital Pressure Pump Starter is competitively priced with an attractive List price for the Indian domestic market. Shipped Goods are carefully packed to prevent damage, with each unit housed in sturdy cartons for optimum protection. Quick Dispatch is guaranteed, and sample units are available for testing prior to bulk orders. Enjoy seamless packaging details and efficient logistics, ensuring you receive quality products promptly, every time you order.

FAQ's of Boost 3 Phase Digital Pressure Pump Starter:

Q: How do I configure the Boost 3 Phase Digital Pressure Pump Starter for my setup?

A: You can easily configure the starter's settings using the touch button interface. The device offers both automatic and manual modes, letting you personalize operating parameters such as start/stop delays, alarm systems, and overload protection according to your requirements.

Q: What are the main benefits of using this digital starter?

A: The principal benefits include extraordinary protection through inbuilt overload, short circuit, and dry run prevention. It offers energy efficiency (98%), instant response (<1 sec), low power consumption, high user programmability, and reliable operation-even in challenging environments.

Q: Where can this digital pump starter be applied?

A: It is ideal for use in submersible pumps, water pump automation, agricultural pumping, industrial water management, and in any situation requiring three-phase motor control with advanced protection.

Q: What is the process for purchasing the Boost Digital Pressure Pump Starter online?

A: Simply visit our web store, select the product, Add to Cart, and proceed with the secure checkout process for a quick, hassle-free transaction. Shipped Goods are dispatched swiftly to your desired location.

Q: When can I expect to receive my order after purchase?

A: Quick Dispatch is our priority-your order will be packed securely and typically shipped within one to two business days after confirmation. Delivery times vary based on location and shipping preference.
