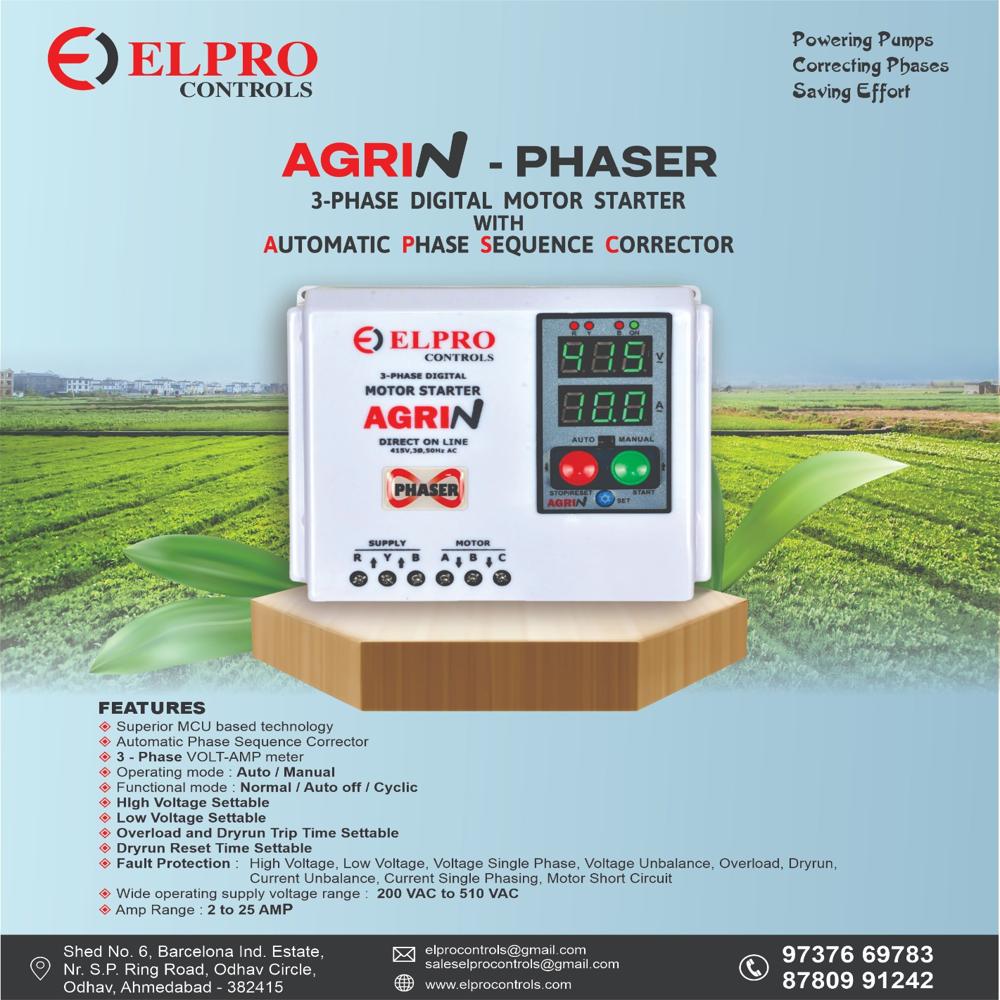

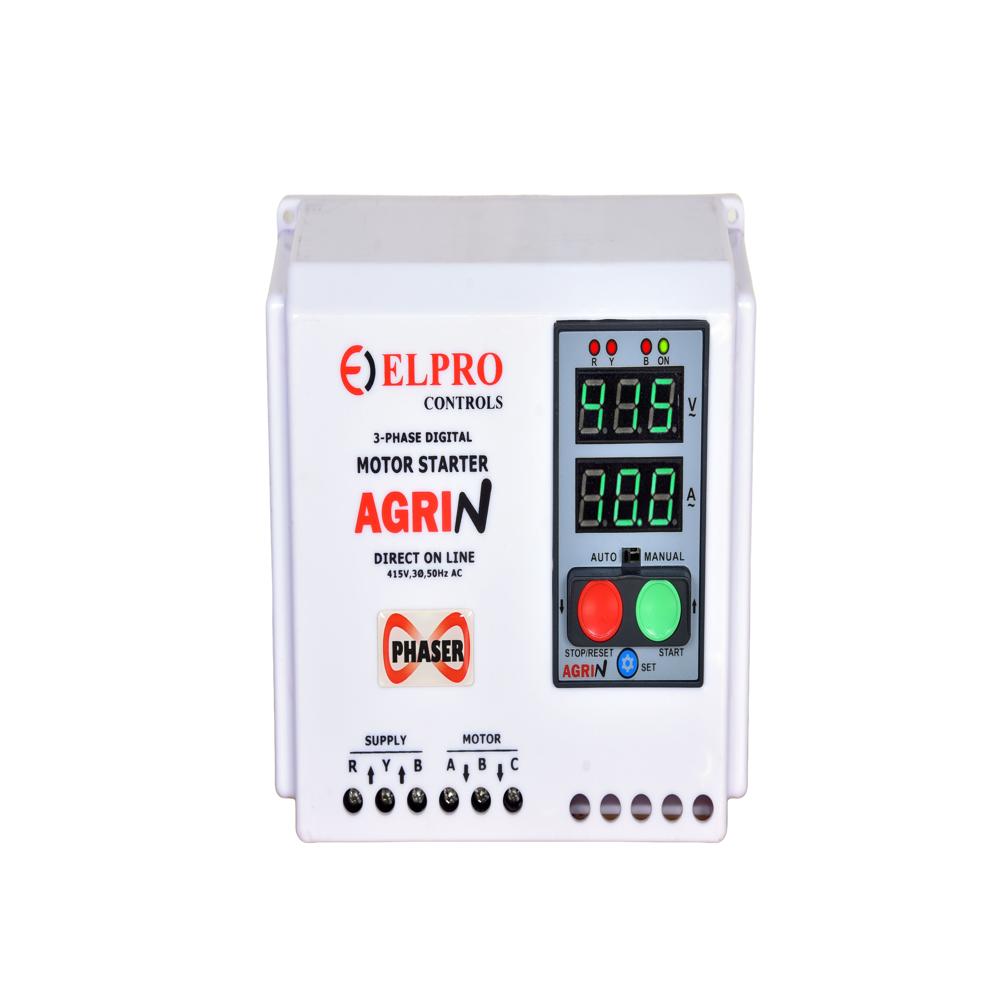

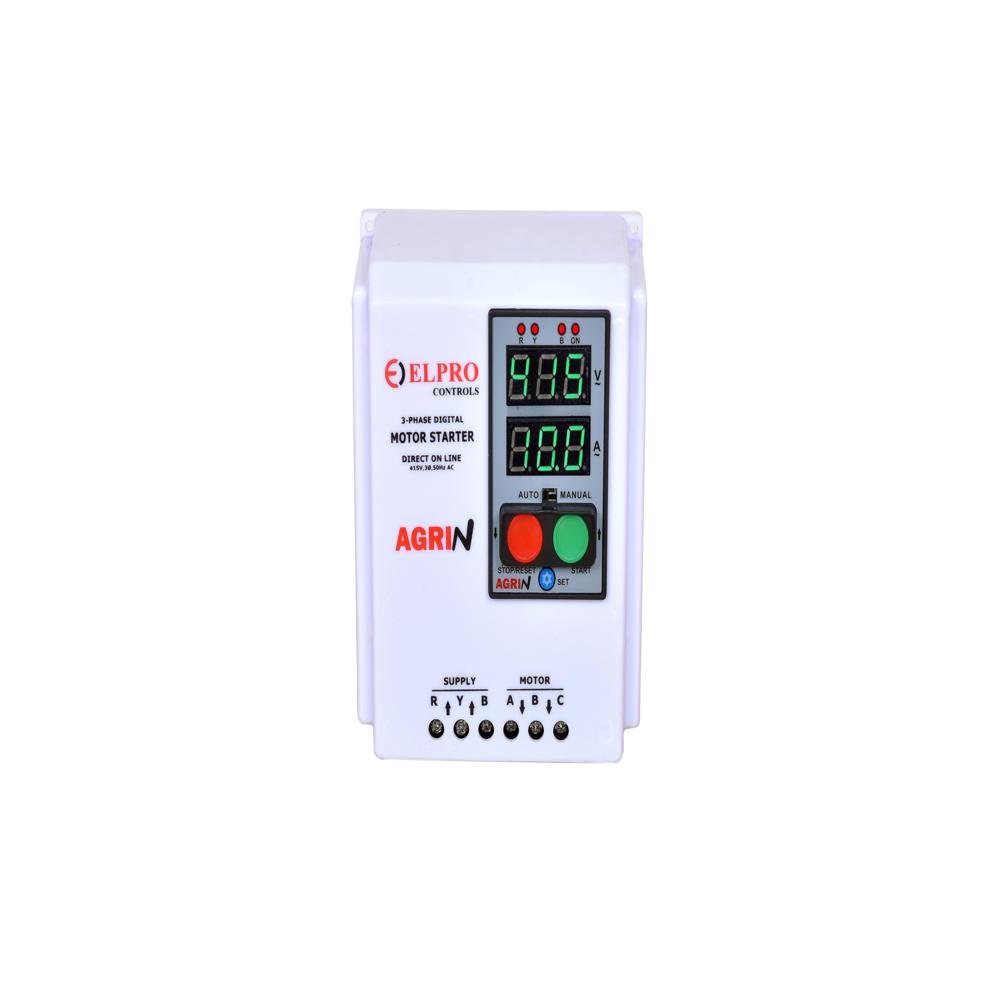

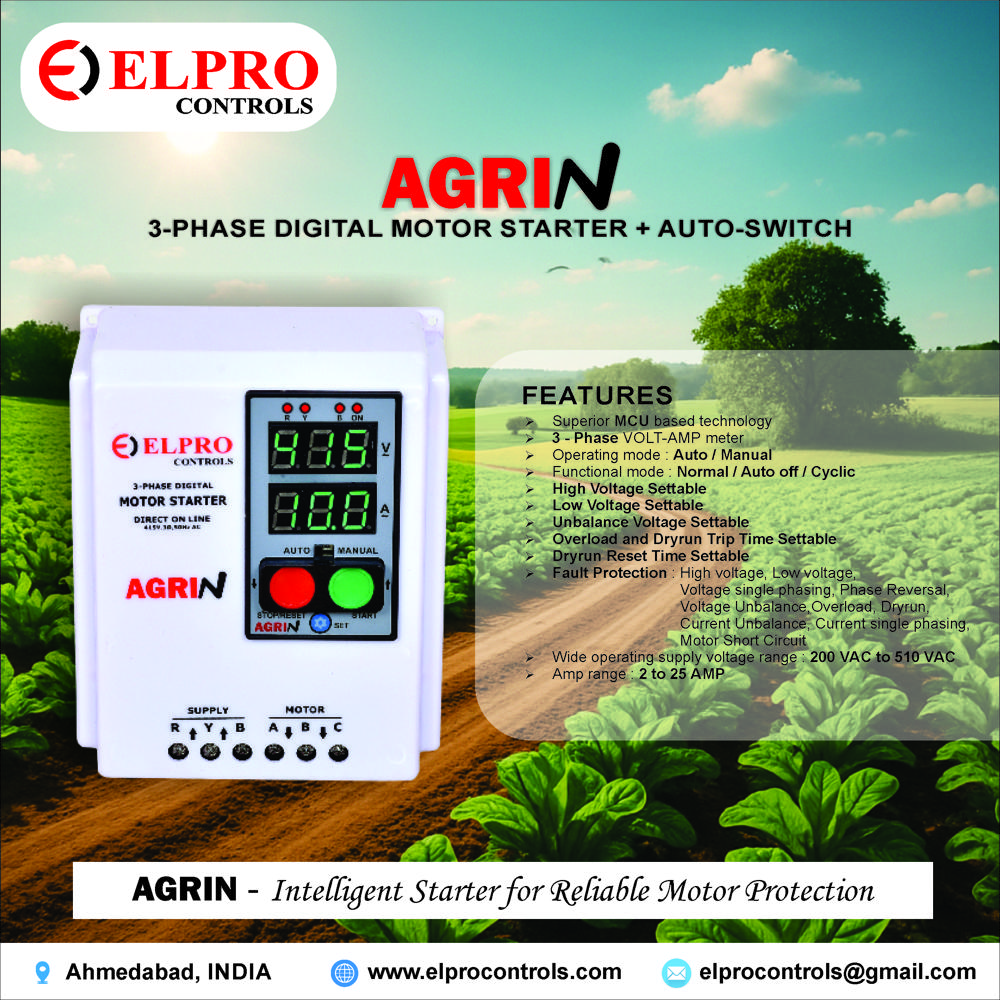

AGRIN-PHASER : 3-Phase Digital Motor Starter With Phase Sequence Corrector
5000.0 INR/Piece
Product Details:
- Operating Temperature -10C to 55C Celsius (oC)
- Efficiency High
- Humidity % 10%-90% RH Non-Condensing
- Connector Type Screw Terminal
- Feature Digital Display, Auto Start/Stop
- Surface Finish Matte
- Click to View more
X
AGRIN-PHASER : 3-Phase Digital Motor Starter With Phase Sequence Corrector Price And Quantity
- 10 Piece
- 5000.0 INR/Piece
- Adjustable
- 50/60 Hz Compatible
- LED Digital Display
- Real Time Monitoring
- Automatic & Manual Switch
- Auto & Manual Reset
- Set, Up, Down, Start, Stop
- Adjustable (0-999 sec)
- -20C to 60C
- ISI Certified
- Up to 2 HP
AGRIN-PHASER : 3-Phase Digital Motor Starter With Phase Sequence Corrector Product Specifications
- Wall Mount
- 15 cm x 10 cm x 6 cm Centimeter (cm)
- Relay Output
- Digital Display, Auto Start/Stop
- Matte
- Standard
- PVC
- Other
- LED
- ABS Plastic
- IP20
- Water Pump / Motor Control
- White
- 200-510 V AC Volt (V)
- Rectangular
- Digital Motor Starter
- NO
- 3
- 1200 g Grams (g)
- 10%-90% RH Non-Condensing
- 12 Months
- -10C to 55C Celsius (oC)
- High
- Low Power Consumption Watt Hour (Wh)
- 415 VAC Volt (V)
- 50 Hz Hertz (HZ)
- 50 Hertz (HZ)
- 25A Ampere (amp)
- Three Phase
- Wall Mounted
- Screw Terminal
- For Motor Protection in Industries, Agriculture & Commercial Complexes
- Adjustable
- 50/60 Hz Compatible
- LED Digital Display
- Real Time Monitoring
- Automatic & Manual Switch
- Auto & Manual Reset
- Set, Up, Down, Start, Stop
- Adjustable (0-999 sec)
- -20C to 60C
- ISI Certified
- Up to 2 HP
AGRIN-PHASER : 3-Phase Digital Motor Starter With Phase Sequence Corrector Trade Information
- Cash in Advance (CID)
- 500 Piece Per Month
- 3 Days
- All India
Product Description
FEATURES
- Superior MCU based technology
- Automatic Phase Sequence Corrector (AGRIN-PHASER)
- 3 - Phase VOLT-AMP meter
- Operating mode : Auto / Manual
- Functional mode : Normal / Auto off / Cyclic
- High Voltage Settable
- Low Voltage Settable
- Overload and Dryrun Trip Time Settable
- Dryrun Reset Time Settable
- Fault Protection : High voltage, Low voltage, Voltage single phasing, Phase Reversal(AGRIN),
- Voltage Unbalance, Overload, Dryrun, Current Unbalance,
- Current single phasing, Motor Short Circuit
- Wide operating supply voltage range : 200 VAC to 510 VAC
- Amp range : 2 to 25 AMP
APPLICATIONS
- For Motor Protection in Industries, Agriculture & Commercial Complexes
Discover the blue-ribbon Agrin-Phaser 3-Phase Digital Motor Starter with Phase Sequence Corrector, preeminent for water pump or motor control applications. Featuring an LED digital display and robust manual/automatic switching, this top-ranking starter supports up to 7.5 HP motors, with adjustable trip times and start delay. Take advantage of real-time voltage monitoring, overload and dry run protection, all in a compact ABS body. With a competitive pricing structure and special rate offers, it's a bargain for both performance and safety, making it an ideal choice for modern installations.
Unmatched Features & Competitive Edge
The Agrin-Phaser 3-Phase Digital Motor Starter is engineered for excellence with a digital LED display for intuitive operation and precise status monitoring. Application media include water pumps and single-phase motors, providing overload, dry run, and overheating protection. Its primary advantages are low power consumption, high efficiency, and robust ABS construction. Users benefit from its bargain value, ISI-certified reliability, and versatility, making it a top choice for critical fluid management tasks.
Dependable Supply, Market Reach & Transaction Terms
With a consistent supply ability and fast dispatching, Agrin-Phaser ensures your orders are managed with utmost care. The product is available at an attractive list price for both domestic and international clients, with freight services tailored to ensure safe delivery. Main export markets include Asia, Africa, and the Middle East, and flexible payment terms further streamline your procurement process. Experience world-class quality, timely availability, and excellent support with every shipment.
Unmatched Features & Competitive Edge
The Agrin-Phaser 3-Phase Digital Motor Starter is engineered for excellence with a digital LED display for intuitive operation and precise status monitoring. Application media include water pumps and single-phase motors, providing overload, dry run, and overheating protection. Its primary advantages are low power consumption, high efficiency, and robust ABS construction. Users benefit from its bargain value, ISI-certified reliability, and versatility, making it a top choice for critical fluid management tasks.
Dependable Supply, Market Reach & Transaction Terms
With a consistent supply ability and fast dispatching, Agrin-Phaser ensures your orders are managed with utmost care. The product is available at an attractive list price for both domestic and international clients, with freight services tailored to ensure safe delivery. Main export markets include Asia, Africa, and the Middle East, and flexible payment terms further streamline your procurement process. Experience world-class quality, timely availability, and excellent support with every shipment.
FAQ's of Agrin-Phaser 3-Phase Digital Motor Starter With Phase Sequence Corrector:
Q: How does the Agrin-Phaser 3-Phase Digital Motor Starter protect my water pump or motor?
A: This starter offers robust overload, dry run, and overheating protection. It continuously monitors voltage and allows adjustment of trip time and start delay, ensuring that your pump or motor operates within safe parameters to prevent potential damage.Q: What types of motors can I use with this digital motor starter?
A: The device supports up to 7.5HP single-phase motors, making it ideal for a variety of water pump or motor control applications commonly found in residential, agricultural, and light industrial settings.Q: When should I use the manual versus automatic control method?
A: Automatic mode is preferred for routine, hands-free operation, while manual mode is useful for system maintenance or when precise intervention is required. The device allows easy switching between the modes to fit your operational needs.Q: Where is the Agrin-Phaser 3-Phase Digital Motor Starter typically installed?
A: Designed for panel and wall mounting, this starter fits standard enclosures. Its compact, rectangular shape and screw terminal connector ease integration into control panels, especially in pump rooms or motor control centers.Q: What is the process for resetting the startup system after a trip event?
A: The motor starter features both auto and manual reset functions. After a trip due to overload or dry run, the starter can reset automatically, or you can use the reset control button, depending on your preference or system requirements.Q: How does the product ensure low power consumption and high efficiency?
A: With a high power factor and advanced automatic switching technology, the motor starter optimizes energy use. This efficiency minimizes power loss, making it cost-effective and environmentally friendly.Tell us about your requirement
