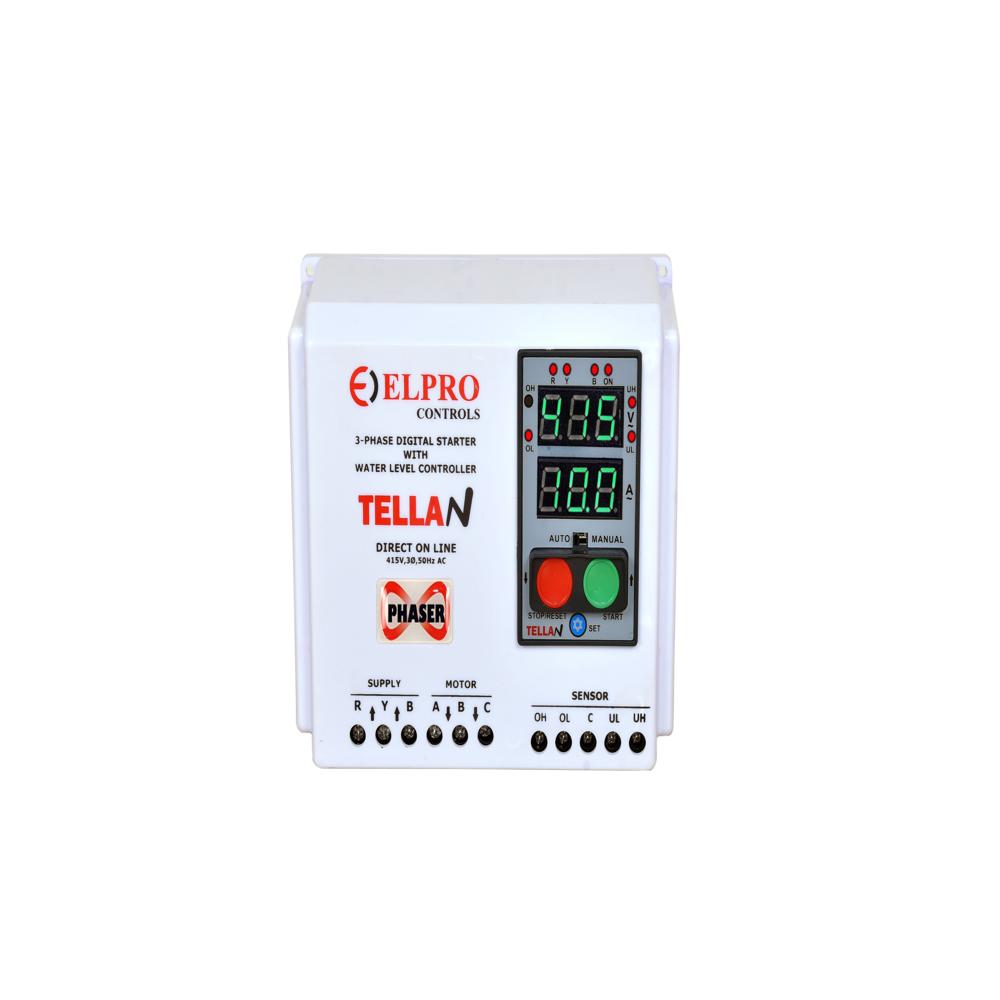

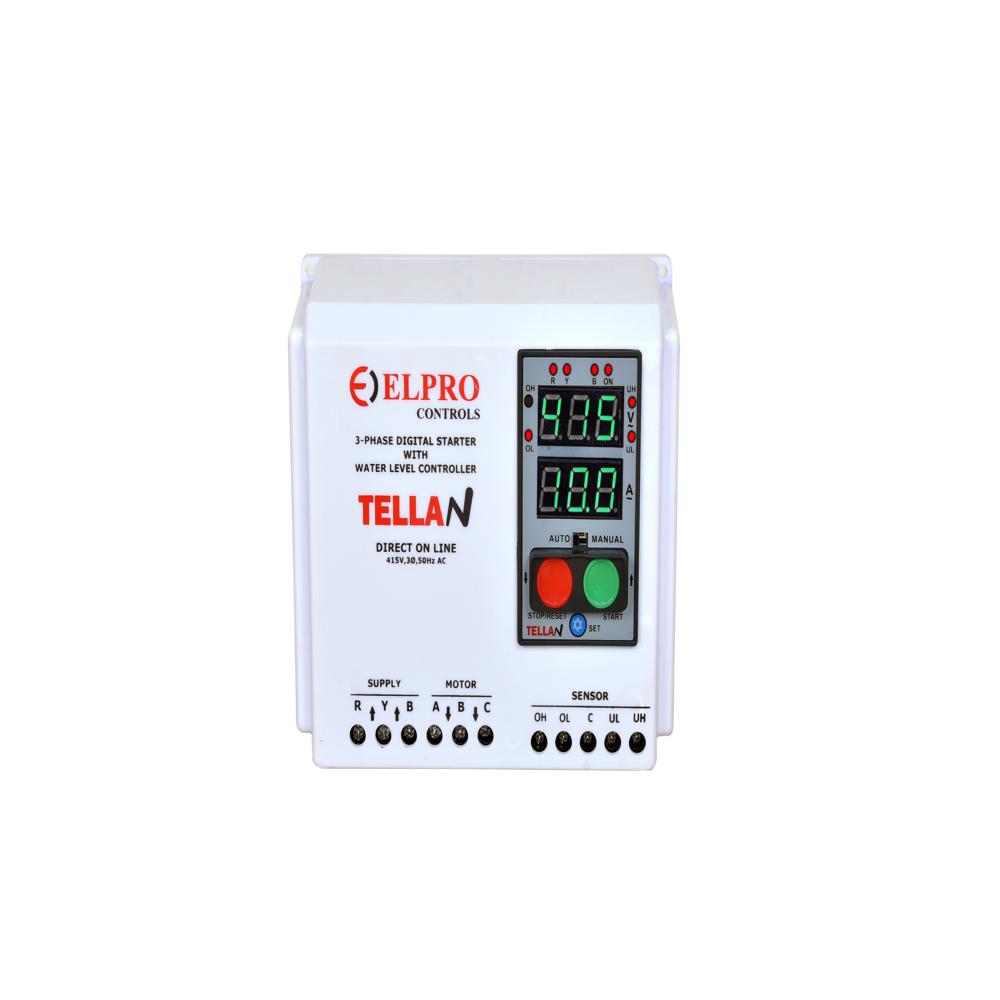

TELLAN : 3-Phase Digital Motor Starter With Water Level Controller

Product Video

TELLAN : 3-Phase Digital Motor Starter With Water Level Controller

4800.0 INR/Piece

Get a Price/Quote

Product Details:

Shape Rectangular
Surface Finish Glossy Finish
IP Rating IP54
Humidity % Max 95% RH (non-condensing)
Connector Type Screw Terminal
Insulation Material High Grade Plastic
Mounting Type Panel Mount
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

TELLAN : 3-Phase Digital Motor Starter With Water Level Controller Price And Quantity

Minimum Order Quantity 10 Piece
Price 4800.0 INR/Piece

Indication Power, Run, Fault LEDs
Suitable For Motor Capacity 0.5 HP to 10 HP
Display Type LED Digital Display
Control Relay Heavy Duty Electromechanical
Compliance IS Standard, CE Certified
Cable Entry Knockout Provided
Control Type Automatic & Manual Modes
Water Level Controller Type Inbuilt Auto Start/Stop Based on Water Level
Reset Function Auto/Manual Reset Option
Current Rating Up to 32A

TELLAN : 3-Phase Digital Motor Starter With Water Level Controller Product Specifications

IP Rating IP54
Humidity % Max 95% RH (non-condensing)
Material ABS Plastic
Frequency (MHz) 50 Hertz (HZ)
Warranty 12 Months
Surface Finish Glossy Finish
Shape Rectangular
Application Industrial motor control and automation
Product Type Digital Motor Starter
Protection Level Other
Mounting Type Panel Mount
Connection Type Terminal Type
Insulation Material High Grade Plastic
Connector Type Screw Terminal
Energy Consumption Low Power Consumption Watt Hour (Wh)
Rated Voltage 415 V AC Volt (V)
Input Voltage 220-510 V AC Volt (V)
Weight 1200 Grams (g)
Operating Temperature -10C to 50C Celsius (oC)
Output Type Relay Output
Efficiency High Efficiency
Phase 3-Phase
Frequency 50 Hertz (HZ)
Feature Digital Display, Water Level Controller (WLC)
Overheating Protection NO
Rated Current 25A Ampere (amp)
Dimension (L*W*H) 240 x 160 x 110 mm Millimeter (mm)
Display Type LED
No Of Poles 3
Size Standard
Color White

Indication Power, Run, Fault LEDs
Suitable For Motor Capacity 0.5 HP to 10 HP
Display Type LED Digital Display
Control Relay Heavy Duty Electromechanical
Compliance IS Standard, CE Certified
Cable Entry Knockout Provided
Control Type Automatic & Manual Modes
Water Level Controller Type Inbuilt Auto Start/Stop Based on Water Level
Reset Function Auto/Manual Reset Option
Current Rating Up to 32A

TELLAN : 3-Phase Digital Motor Starter With Water Level Controller Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 500 Piece Per Month
Delivery Time 3 Days
Main Domestic Market All India

Product Description

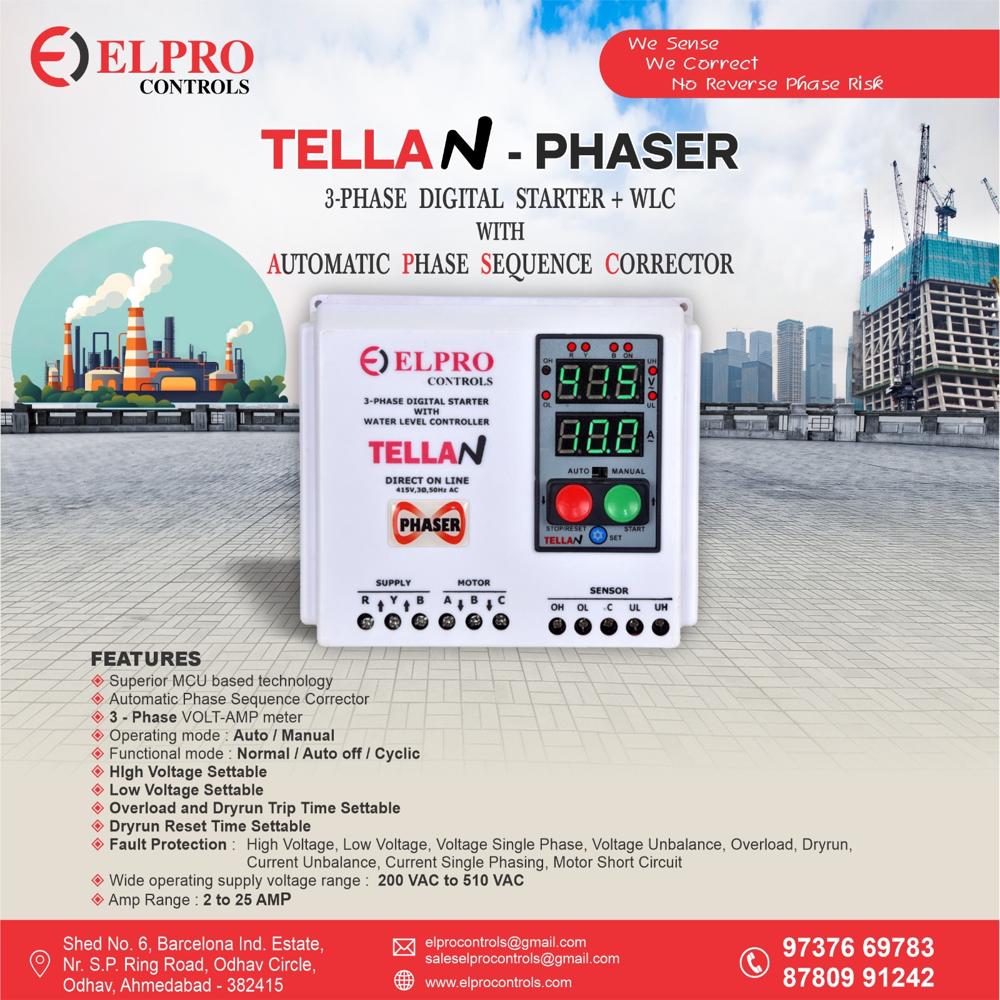

FEATURES

Superior MCU based technology
Automatic Phase Sequence Corrector (TELLAN-PHASER)
3 - Phase VOLT-AMP meter
Operating mode : Auto / Manual
Functional mode : Normal / Auto off / Cyclic
High Voltage Settable
Low Voltage Settable
Overload and Dryrun Trip Time Settable
Dryrun Reset Time Settable
Fault Protection : High voltage, Low voltage, Voltage single phasing, Phase Reversal (TELLAN), Voltage Unbalance, Overload, Dryrun, Current Unbalance, Current single phasing, Motor Short Circuit
Wide operating supply voltage range : 200 VAC to 510 VAC
Amp range : 2 to 25 AMP

APPLICATIONS

For Motor Protection in Hotels, Homes, Commercial Complexes & Industries

MODEL	DESCRIPTION
TELLAN	3-Phase Digital Starter with Water Level Controller, SUPPLY-415VAC, 2 to 25 AMP
TELLAN-PHASER	TELLAN + Automatic Phase Sequence Corrector

Explore the superb Tellan 3-Phase Digital Motor Starter with inbuilt Water Level Controller-crafted for industrial excellence. With instant checkout and clearance options available, it offers breathtaking protection through advanced overload and short-circuit features. The LED digital display keeps you informed with precise Power, Run, and Fault LEDs, while the Auto/Manual reset function ensures reliability. Perfect for 1 HP to 7.5 HP motors, this heavy-duty starter boasts high efficiency, low power consumption, and IP54 protection-all with a glossy finish for a modern look.

Amazing Features & User Applications

The Tellan 3-Phase Digital Motor Starter With WLC boasts extra features, including adjustable auto/manual controls, overheating protection, and a robust heavy-duty relay. It is perfect for industrial users, pump operators, and automation experts seeking durability and simplicity in motor management. Direction of use is straightforward: connect via the terminal type connections, select your desired mode, and let the water level controller auto-start/stop your pumps, ensuring smooth, continuous operation.

Certifications, Sample Availability & Reliable Supply

This premium motor starter is IS Standard compliant and CE certified-delivered with meticulous care across India. Ask for a sample to evaluate its superb efficiency and installation. Tellan ensures high supply ability to meet demanding orders, with secure panel-mount design and screw terminal connectors. Freight logistics are optimized for prompt deliveries, allowing seamless integration into your automation systems. Enjoy confidence with every delivered product, designed for top-tier industrial performance.

FAQ's of Tellan 3 Phase Digital Motor Starter With Wlc:

Q: How does the inbuilt Water Level Controller benefit my pump operations?

A: The inbuilt Water Level Controller automatically manages starting and stopping based on water levels, preventing dry runs and overflow, enhancing protection and operational efficiency for your pumps.

Q: What is the installation process for the Tellan 3-Phase Digital Motor Starter with WLC?

A: Installation is straightforward-mount on your control panel, connect your wires to the terminal-type connectors, select the desired mode (automatic or manual), and follow standard safety protocols.

Q: When should I use the manual reset function?

A: Use the manual reset when you need to reset your system manually after a fault or if you want to have complete control over reactivation following a trip or maintenance event.

Q: Where can this starter be used and what motor capacities does it support?

A: It's ideal for industrial motor control and automation, supporting a wide range of motors with capacities from 0.5 HP up to 10 HP, ensuring versatility across various applications.

Q: How efficient is the Tellan Starter in terms of energy consumption?

A: The Tellan Starter is designed for high efficiency and low power consumption, helping to reduce energy costs while maintaining reliable motor operations.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Digital Motor Starter' category

AGRIN-PHASER : 3-Phase Digital Motor Starter With Phase Sequence Corrector Price : 5000.0 INR/Piece Minimum Order Quantity : 10 Connection Type : Wall Mounted Mounting Type : Wall Mount Energy Consumption : Low Power Consumption Watt Hour (Wh) Connector Type : Screw Terminal Insulation Material : PVC Product Type : Digital Motor Starter Protection Level : Other Surface Finish : Matte Frequency (MHz) : 50 Hz Hertz (HZ) Shape : Rectangular Application : Water Pump / Motor Control IP Rating : IP20 Humidity % : 10%90% RH NonCondensing Material : ABS Plastic No Of Poles : 3 Dimension (L*W*H) : 15 cm x 10 cm x 6 cm Centimeter (cm) Size : Standard Color : White Overheating Protection : NO Output Type : Relay Output Phase : Three Phase Feature : Digital Display, Auto Start/Stop Efficiency : High Input Voltage : 200510 V AC Volt (V) Rated Voltage : 415 VAC Volt (V) Operating Temperature : 10C to 55C Celsius (oC) Weight : 1200 g Grams (g) Warranty : 12 Months Display Type : LED Rated Current : 25A Ampere (amp) Frequency : 50 Hertz (HZ) Usage & Applications : For Motor Protection in Industries, Agriculture & Commercial Complexes

Send Inquiry

NIKON : 1-Phase Digital Motor Starter With Auto-switch Price : 2900.0 INR/Piece Minimum Order Quantity : 10 Connection Type : Terminal Block Mounting Type : Wall Mount Energy Consumption : Low Watt Hour (Wh) Connector Type : Screw Terminal Insulation Material : PVC Product Type : Digital Motor Starter Protection Level : Other Surface Finish : Smooth Frequency (MHz) : 50 Hz Hertz (HZ) Shape : Rectangular Application : Single Phase Motor Protection and Control IP Rating : IP20 Humidity % : Up to 95% noncondensing Material : Polycarbonate Body, Brass Connectors No Of Poles : 1 Dimension (L*W*H) : 140 mm x 95 mm x 55 mm Millimeter (mm) Size : Standard Color : White Overheating Protection : NO Output Type : Auto Switch/Manual Phase : Single Phase Feature : Digital Display, Automatic Reset, User Settable Parameters Input Voltage : 140300 V AC Volt (V) Rated Voltage : 230 VAC Volt (V) Operating Temperature : 0 to 50C Celsius (oC) Weight : 1100 g Grams (g) Warranty : 12 Months Display Type : LED Rated Current : 16A Ampere (amp) Frequency : 50 Hertz (HZ) Usage & Applications : For Motor Protection in Home, Industries, Commercial Complexes & Agriculture

Send Inquiry

FILLAN : 1 Phase Digital Motor Starter With WLC Price : 4000.0 INR/Piece Minimum Order Quantity : 10 Connection Type : Terminal Mounting Type : Wall Mounted Energy Consumption : Low Watt Hour (Wh) Connector Type : Screw Terminal Insulation Material : High Grade Plastic Product Type : Digital Motor Starter with Water Level Controller (WLC) Protection Level : IP54 Surface Finish : Matte Frequency (MHz) : 50 Hz Hertz (HZ) Shape : Rectangular Application : For Single Phase Water Pumps / Motors IP Rating : IP54 Humidity % : 95% RH (noncondensing) Material : PVC No Of Poles : 1 Pole Dimension (L*W*H) : 200 mm x 150 mm x 100 mm Millimeter (mm) Size : Standard Color : White Overheating Protection : NO Output Type : Digital Relay Output Phase : Single Phase Feature : Auto/Manual Start, Digital Display, Motor Protection, Dry Run Protection Input Voltage : 140300 V AC Volt (V) Rated Voltage : 230 VAC Volt (V) Operating Temperature : 0C to 50C Celsius (oC) Weight : 1200 Grams (g) Warranty : 12 Months Display Type : LED Rated Current : 16 Ampere (amp) Frequency : 50 Hertz (HZ) Usage & Applications : Hotels, Homes, Commercial complexes & Insdustries

Send Inquiry

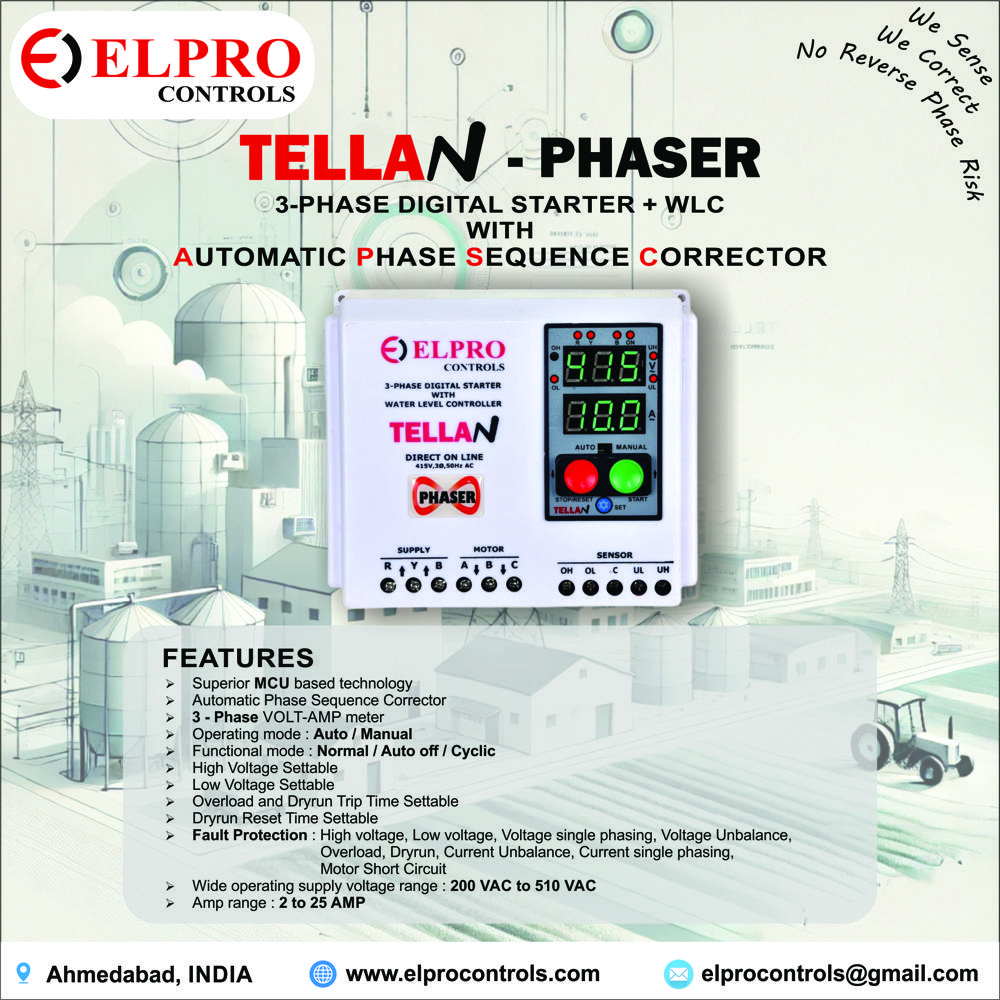

TELLAN-PHASER : 3 Phase Digital Motor Starter+WLC with Automatic Phase Sequence Corrector Price : 5800.0 INR/Piece Minimum Order Quantity : 10 Connection Type : Screw Terminal Mounting Type : Wall Mounted Energy Consumption : Low Watt Hour (Wh) Connector Type : Terminal Block Insulation Material : PVC Product Type : Digital Motor Starter Protection Level : Other Surface Finish : Matte Frequency (MHz) : 50 Hz Hertz (HZ) Shape : Rectangular Application : Industrial Motor Protection, Water Level Control Humidity % : 95% (Noncondensing) Material : Polycarbonate No Of Poles : 3 Pole Dimension (L*W*H) : 265 mm x 140 mm x 110 mm Millimeter (mm) Size : Standard Color : White Overheating Protection : NO Output Type : Relay Output Phase : 3Phase Feature : Digital Display, Water Level Controller (WLC) Efficiency : High Efficiency Input Voltage : 220 to 510 VAC Volt (V) Rated Voltage : 415 VAC Volt (V) Operating Temperature : 10C to +55C Celsius (oC) Weight : 1400 Grams (g) Warranty : 12 Months Display Type : LED Rated Current : 25A Ampere (amp) Frequency : 50 Hertz (HZ) Usage & Applications : For Motor Protection in Hotels, Homes, Commercial Complexes & Industries
