Boost Phaser 3 Phase Digital Control Panel With Auto Switch

Get a Price/Quote

Product Details:

Base Material Other
Rated Insulation Voltage 690V
Way 3 Way
Protection Class Class I
Current Rating 63A
Connectivity Type Terminal Block
Thickness 1.6 mm
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Boost Phaser 3 Phase Digital Control Panel With Auto Switch Price And Quantity

Minimum Order Quantity 10 Piece

Bus Bar Material Electrolytic Copper
Enclosure Type Dust and Moisture Protected
Panel Weight Approx. 11 kg
Auxiliary Supply 230V AC (For Digital Meter)
Input Phase Requirement 3-Phase (R, Y, B)
Circuit Breaker Type Miniature Circuit Breaker (MCB)
Indication Lamps Phase On, Auto, Manual, Fault
Mounting Type Wall Mounted / Surface Mount
Model Name Boost Phaser
Terminal Size 25 mm2
Humidity Range Up to 95% RH Non-Condensing
Ambient Operating Temperature -10C to +55C
Control Switch Auto/Manual Selector Switch

Boost Phaser 3 Phase Digital Control Panel With Auto Switch Product Specifications

Rated Insulation Voltage 690V
Frequency (MHz) 50Hz
Base Material Other
Thickness 1.6 mm
Connectivity Type Terminal Block
Current Rating 63A
Dimension (L*W*H) 500 x 400 x 200 mm
Protection Class Class I
Way 3 Way
Surface Color Powder Coated Grey
Cooling System Natural Air Cooling
Material Other
Components MCB, Contactor, Digital Ammeter/Voltmeter, Auto/Manual Switch
Features Auto/Manual Switch, Phase Sequence Protection, Overload Protection, Compact Design
Display Type Digital LED Display
Operating Voltage 380-440V AC
Rated Voltage 415V AC
Rated Operation Voltage 415V
Cover Material Powder Coated Sheet Metal
IP Rating Ip54
Maximum Output Current 63A
Application Industrial Automation, AC Motor, Water Pumps
Cabinet Material CRCA Steel
Protection Level IP54
Surface Finish Matte
Rated Current 63A
Panel Type Wall Mounted
Control System Microcontroller Based Digital System
Product Type 3 Phase Digital Control Panel
Standard IS 8623 / IEC 60439

Bus Bar Material Electrolytic Copper
Enclosure Type Dust and Moisture Protected
Panel Weight Approx. 11 kg
Auxiliary Supply 230V AC (For Digital Meter)
Input Phase Requirement 3-Phase (R, Y, B)
Circuit Breaker Type Miniature Circuit Breaker (MCB)
Indication Lamps Phase On, Auto, Manual, Fault
Mounting Type Wall Mounted / Surface Mount
Model Name Boost Phaser
Terminal Size 25 mm2
Humidity Range Up to 95% RH Non-Condensing
Ambient Operating Temperature -10C to +55C
Control Switch Auto/Manual Selector Switch

Boost Phaser 3 Phase Digital Control Panel With Auto Switch Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 500 Piece Per Month
Delivery Time 10 Days
Main Domestic Market All India

Product Description

FEATURES

Superior MCU based technology
Automatic Phase Sequence Corrector (BOOST-PHASER)
3 - Phase VOLT-AMP meter
Operating mode : Auto / Manual
High Voltage Settable
Low Voltage Settable
Overload and Dryrun Trip Time Settable
Fault Protection : High voltage, Low voltage, Voltage single phasing, Phase Reversal (BOOST), Voltage Unbalance, Overload, Dryrun, Current Unbalance, Current single phasing, Motor Short Circuit
Wide operating supply voltage range : 200 VAC to 510 VAC
Amp range : 2 to 25 AMP
Attractive powder coated sheet metal enclosure

APPLICATIONS

For Pressure Pump Protection in Hotels, Homes, Commercial Complexes & Industries

MODEL	DESCRIPTION
BOOST-PANEL	3-Phase Digital Pressure Pump Control Panel with Pressure Switch & Underground Tank Signal
BOOST-PHASER-PANEL	BOOST + Automatic Phase Sequence Corrector

Select the Boost Phaser 3 Phase Digital Control Panel With Auto Switch and secure an unassailable advantage in industrial automation. This immaculate panel, crafted from CRCA steel and finished in powder-coated grey, offers heroic reliability with phase sequence and overload protection. Price cut opportunities make this scarce, high-spec panel even more attractive. Designed for operating voltages of 380-440V AC and current rating up to 63A, Boost Phaser delivers uncompromising safety, dust and moisture resistance (IP54), and advanced digital control - your trusted solution for demanding environments.

Optimized Usage and Applications

Boost Phaser 3 Phase Digital Control Panel With Auto Switch stands as the ideal choice for industrial automation, AC motors, and water pump operations. Its robust design and advanced microcontroller-based digital system ensure seamless control in demanding environments. Adaptable for use across a wide range of industries, this panel accommodates ambient conditions from -10C to +55C and up to 95% RH non-condensing humidity. From process plants to manufacturing, its select features deliver uncompromising performance and application versatility.

Supply Ability and Packaging Information

Boost Phaser control panels are produced in limited, select batches to maintain uncompromised quality, with supply ready to meet urgent requirements. Each panel is immaculately packaged for safe transportation, ensuring its dust and moisture-protected design arrives intact. Once your order is placed, products are swiftly dispatched and generally delivered within a short, reliable timeframe. Boost Phaser's dispatching process ensures that your industrial control solutions are always delivered as promised-secure, prompt, and ready for installation.

FAQ's of Boost Phaser 3 Phase Digital Control Panel With Auto Switch:

Q: How does the Auto/Manual selector switch enhance the usage of the Boost Phaser panel?

A: The Auto/Manual selector switch provides you with flexibility for both automated and manual control, allowing user intervention when required or seamless automated operation according to your system's needs.

Q: What protection features are included in the Boost Phaser 3 Phase Digital Control Panel?

A: The panel provides phase sequence protection, overload protection, miniature circuit breakers (MCBs), and an IP54 enclosure to safeguard against dust, moisture, and electrical faults.

Q: Where can the Boost Phaser digital control panel be installed?

A: Designed as a wall or surface-mounted unit, the Boost Phaser can be installed in various industrial environments, such as factories, automation systems, and water pump stations.

Q: What is the process for ordering and dispatching the Boost Phaser panel?

A: After placing an order with a manufacturer or supplier in India, your Boost Phaser panel is packaged immaculately and dispatched promptly, ensuring timely and secure delivery.

Q: What benefits does the digital LED display provide during operation?

A: The digital LED display offers clear and precise monitoring of current and voltage, enhancing operational efficiency and aiding in quick fault diagnosis for minimal downtime.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Digital Control Panel' category

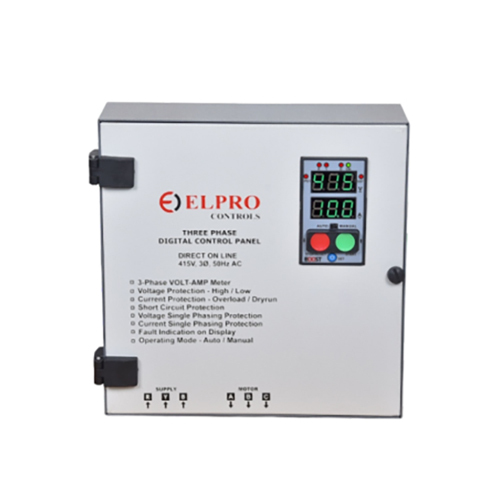

Boost 3 Phase Digital Control Panel With Auto Switch Minimum Order Quantity : 10 Maximum Output Current : 63A IP Rating : Ip54 Application : Industrial, Submersible Pump, Motors Product Type : Other, 3 Phase Digital Control Panel With Auto Switch Cabinet Material : Mild Steel with Powder Coating Rated Current : 63A Protection Level : IP54 Surface Finish : Powder Coated Control System : Digital Auto Control Panel Type : Digital Control Panel Standard : IEC 61439, IS 8623 Material : Mild Steel Components : MCB, Digital Meter, Contactor, Auto Switch, Indication Lamps Cooling System : Natural Air Cooling Operating Voltage : 415V AC Features : Auto Phase Selection, Digital Display, Overload Protection, High/Low Voltage Protection, Manual/Auto Switch Display Type : Other, Digital LCD Rated Operation Voltage : 415V Rated Voltage : 415V AC Cover Material : Other, Powder Coated Mild Steel Connectivity Type : Hardwired Terminal Thickness : 1.6 mm Dimension (L*W*H) : 650 x 450 x 220 mm Current Rating : 63A Surface Color : Other, Grey Way : Triple Phase Protection Class : Class I Rated Insulation Voltage : 660V Frequency (MHz) : 50 Hz Base Material : Mild Steel

Send Inquiry

Nowi Auto 1 Phase Digital Control Panel With Wlc Minimum Order Quantity : 10 Maximum Output Current : 32A IP Rating : Ip54 Application : Water Pump Control, Motor Pump Protection Product Type : Other, Digital Control Panel with Water Level Controller (WLC) Cabinet Material : Powder Coated MS Rated Current : 32A Protection Level : IP54 Surface Finish : Powder Coated Control System : Digital Automatic Panel Type : Auto Digital Standard : IS/IEC 60947 Material : Mild Steel Components : MCB, Contactor, Relay, Water Level Controller, Digital Display Cooling System : Natural Air Operating Voltage : 220V 240V AC Features : Auto/Manual Mode, Pump OnOff Delay, Dry Run Protection, Water Level Sensing, Digital Indication Display Type : Other, LED Digital Rated Operation Voltage : 230V Rated Voltage : 230V AC Cover Material : Other, Polycarbonate Connectivity Type : Panel Mount Wired Thickness : 2 mm Dimension (L*W*H) : 350mm x 250mm x 120mm Current Rating : 32A Surface Color : Other, Grey Way : Single Phase Protection Class : Class I Rated Insulation Voltage : 690V Frequency (MHz) : 50 Hz Base Material : Mild Steel

Send Inquiry

Agrin Phaser 3 Phase Digital Control Panel With Auto Switch Minimum Order Quantity : 10 Maximum Output Current : 63A IP Rating : Ip54 Application : Industrial and Commercial Automation Product Type : Other, 3 Phase Digital Control Panel with Auto Switch Cabinet Material : Powder Coated Steel Rated Current : 63 A Protection Level : IP54 Surface Finish : Powder Coated Control System : Microcontroller Based Panel Type : Digital Standard : IS Certified Material : Mild Steel Components : Digital Voltmeter, Ammeter, Phase Failure Relay, MCCB, Auto Switch Cooling System : Natural Air Cooled Operating Voltage : 415V AC Features : Phase sequence & phase failure protection, automatic switching, overload protection, compact design Display Type : Other, Digital LED Rated Operation Voltage : 415 VAC Rated Voltage : 415V AC Cover Material : Other, Powder Coated Metal Connectivity Type : Panel Mounted Terminals Thickness : 1.6 mm Dimension (L*W*H) : 400 x 300 x 150 mm Current Rating : 63A Surface Color : Other, Grey Way : 3 Way Protection Class : Class I Rated Insulation Voltage : 690V Frequency (MHz) : 50 Hz Base Material : Other

Send Inquiry

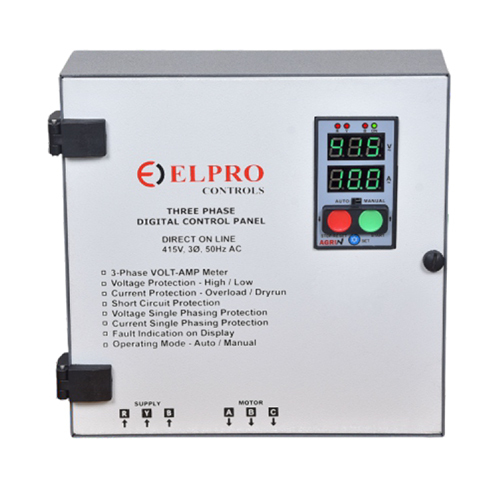

Tellan 3 Phase Digital Control Panel With Wlc Minimum Order Quantity : 10 Maximum Output Current : 63A IP Rating : Ip54 Application : Motor/Water Pump Control Product Type : Other, Digital Control Panel With Water Level Controller (WLC) Cabinet Material : Steel Rated Current : 63A Protection Level : IP54 Surface Finish : Powder Coated Control System : Digital/Automatic Panel Type : Wall Mounted Standard : IS/IEC 614391 Material : Other Components : MCB, Contactor, Digital Display, Water Level Controller Module, Indicator Lamps Cooling System : Natural Air Cooling Operating Voltage : 415 V AC Features : Auto/Manual Operation, Overload Protection, Short Circuit Protection, High/Low Voltage Protection Display Type : Other, Digital LED Display Rated Operation Voltage : 415 V Rated Voltage : 415 V AC Cover Material : Other, Glass/Metal Connectivity Type : Terminal Connection Thickness : 1.6 mm Dimension (L*W*H) : 600 x 500 x 200 mm Current Rating : 63A Surface Color : Other, Grey Way : 3 Phase Protection Class : Class I Rated Insulation Voltage : 660 V Frequency (MHz) : 50 Hz Base Material : Other
