Digital Control Panel

• Application
• Submersible Pump

• Base Material
• Mild Steel

• Cabinet Material
• Sheet Metal, Powder Coated

• Components
• Digital Controller, Indicators, Switches, MCB

• Connectivity Type
• Terminal Block

• Control System
• Electronic (Digital) Contactor-based

• Cooling System
• Natural Air Cooling

• Cover Material
• Other

• Current Rating
• 30A

• Dimension (L*W*H)
• 400mm x 300mm x 170mm Millimeter (mm)

• Display Type
• Digital

• Features
• Automatic Operation, Short Circuit Protection, Overload Protection, Manual/Auto Switch, Tank Full & Dry Run Indications

• Frequency
• 50 Hertz (HZ)

• Frequency (MHz)
• 50 Hz Hertz (HZ)

• Material
• Mild Steel

• Maximum Output Current
• 30A Ampere (amp)

• Operating Temperature
• 0 to 55 Celsius (oC)

• Operating Voltage
• 230V AC Volt (V)

• Panel Type
• Wall Mounted

• Phase
• Single

• Product Type
• Electric Panel

• Protection Level
• Other

• Rated Current
• 30A Ampere (amp)

• Rated Operation Voltage
• 140 to 310 VAC

• Rated Voltage
• 230 VAC Volt (V)

• Standard
• IS standards

• Surface Color
• Other

• Surface Finish
• Powder Coated

• Thickness
• 22 Gauge

• Usage & Applications
• Submersible Pump

• Warranty
• 12 Months

• Way
• Single Phase

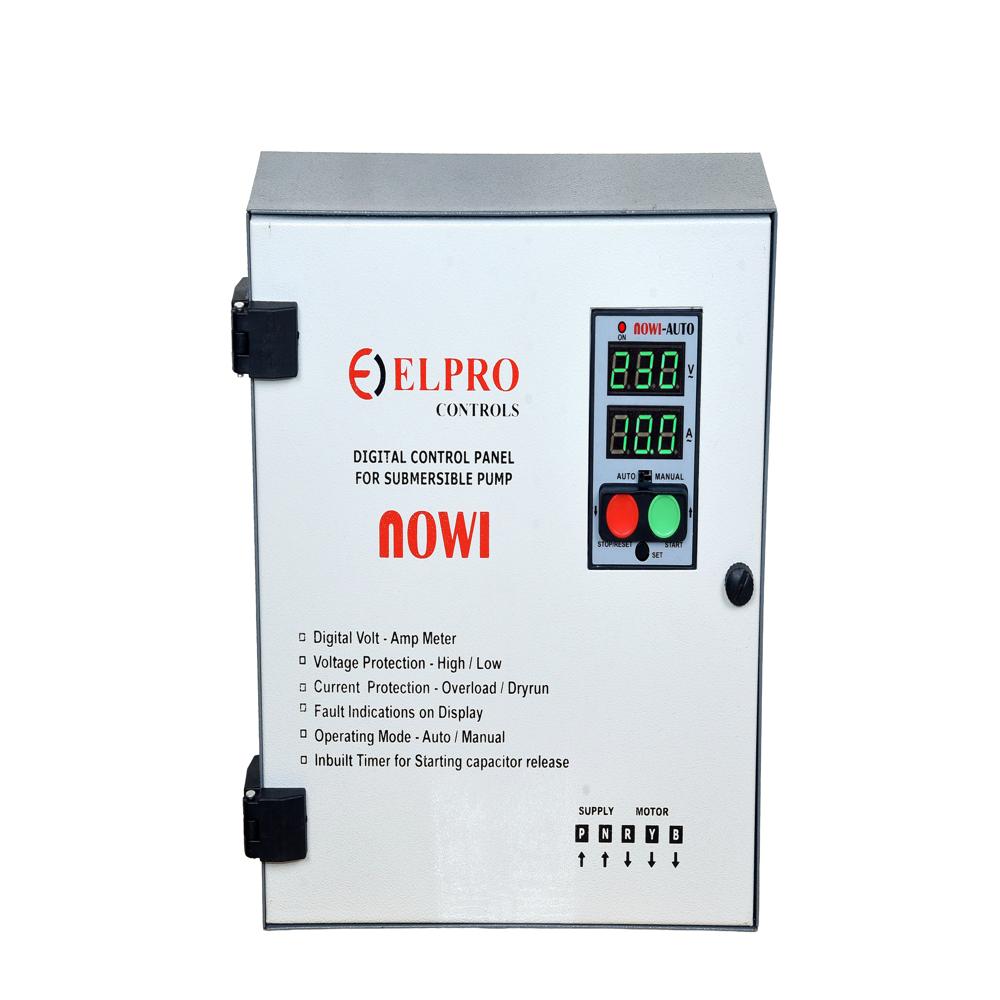

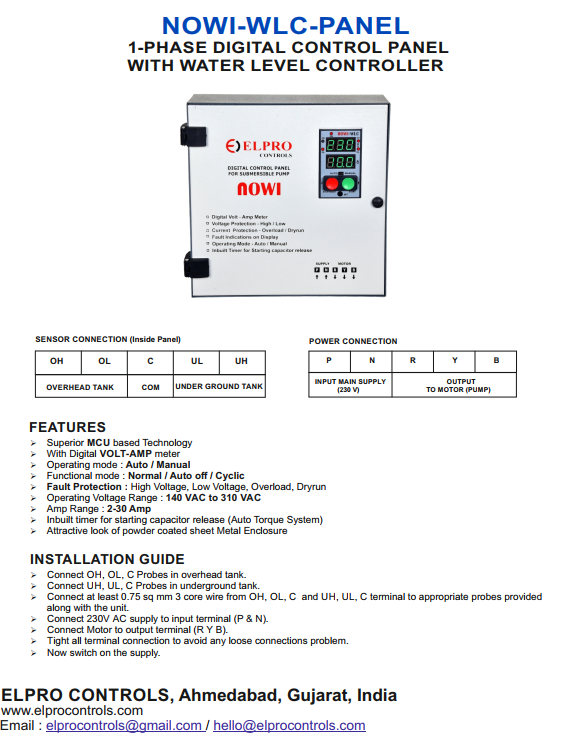

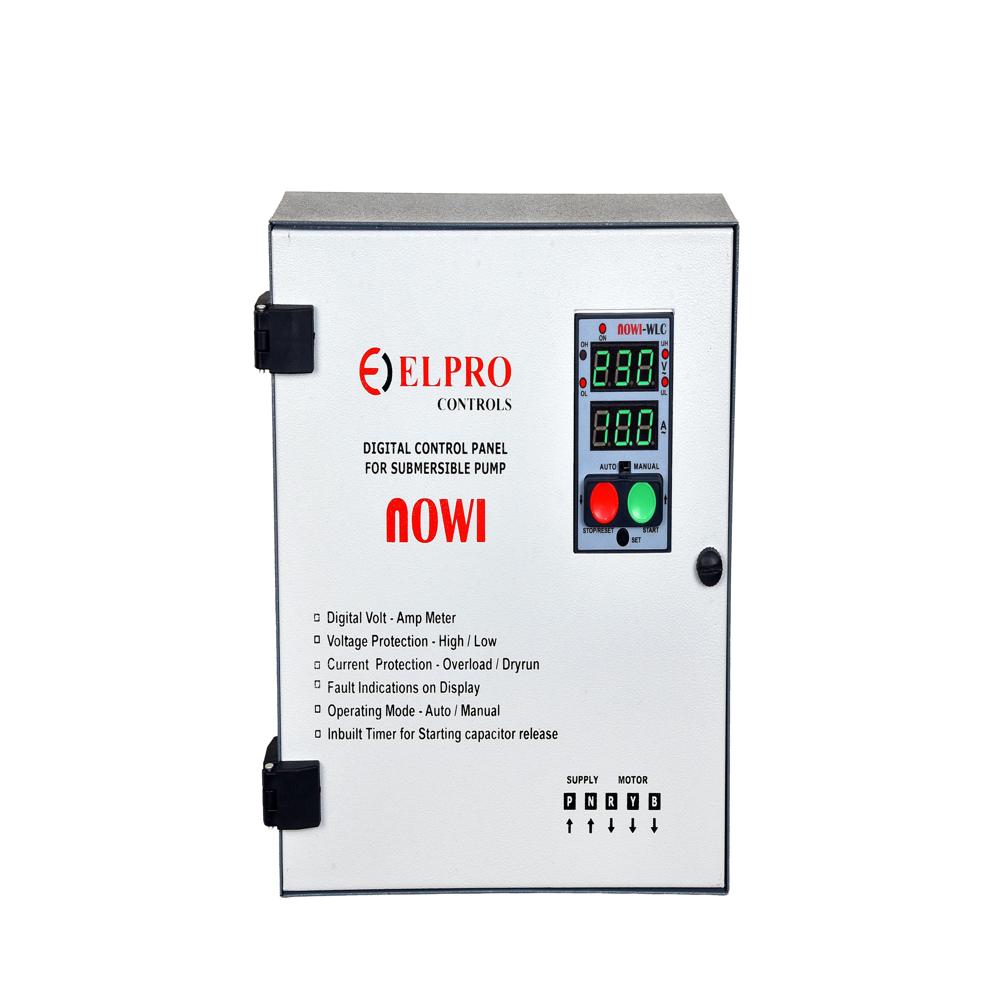

• Application
• Water Pump Control, Motor Pump Protection

• Base Material
• Mild Steel

• Cabinet Material
• Powder Coated MS

• Components
• Contactor, Relay, Water Level Controller, Digital Display

• Connectivity Type
• Panel Mount Wired

• Control System
• Digital Automatic

• Cooling System
• Natural Air

• Cover Material
• Other

• Current Rating
• 30 Amp

• Dimension (L*W*H)
• 350mm x 250mm x 120mm Millimeter (mm)

• Display Type
• Digital

• Features
• Auto/Manual Mode, Pump On-Off Delay, Dry Run Protection, Water Level Sensing, Digital Indication

• Frequency
• 50 Hertz (HZ)

• Frequency (MHz)
• 50 Hz Hertz (HZ)

• Material
• Mild Steel, Metal

• Maximum Output Current
• 30A Ampere (amp)

• Operating Temperature
• 0 to 55 Celsius (oC)

• Operating Voltage
• 140V - 310V AC Volt (V)

• Panel Type
• Auto Digital

• Phase
• Single

• Product Type
• Switchgear

• Protection Level
• Other

• Rated Current
• 30A Ampere (amp)

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 230V

• Rated Voltage
• 230 VAC Volt (V)

• Surface Color
• Other

• Surface Finish
• Powder Coated

• Thickness
• 22 Gauge

• Usage & Applications
• Submersible Pump

• Warranty
• 12 Months

• Way
• Single Phase

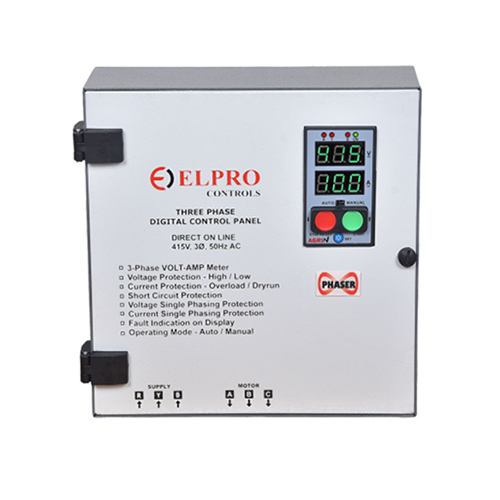

• Application
• Agricultural & Industrial 3 Phase Motor protection

• Base Material
• Metal Base

• Cabinet Material
• Sheet Metal Powder Coated

• Components
• Digital Display, CT, Auto Switch, Indicators, Contactor, Terminal Blocks

• Control System
• Microprocessor Based

• Cooling System
• Natural Air Ventilation

• Cover Material
• Metal

• Current Rating
• 25A

• Dimension (L*W*H)
• 600 x 450 x 200 mm Millimeter (mm)

• Display Type
• Digital

• Features
• Auto Phase Switching, Overload Protection, Digital Monitoring, Fault Indication, Manual/Auto Operation

• Frequency
• 50 Hertz (HZ)

• Frequency (MHz)
• 50 Hz Hertz (HZ)

• Material
• Metal

• Maximum Output Current
• 25A Ampere (amp)

• Operating Temperature
• 0 to 55 Celsius (oC)

• Operating Voltage
• 415V Volt (V)

• Panel Type
• Wall Mounted

• Phase
• Three

• Product Type
• Switchgear

• Protection Level
• Other

• Rated Current
• 25A Ampere (amp)

• Rated Operation Voltage
• 200 to 510 V AC

• Rated Voltage
• 415 Volt (V)

• Surface Color
• Other

• Surface Finish
• Powder Coated

• Thickness
• 22 Gauge

• Usage & Applications
• Agriculture & Industrial

• Warranty
• 12 Months

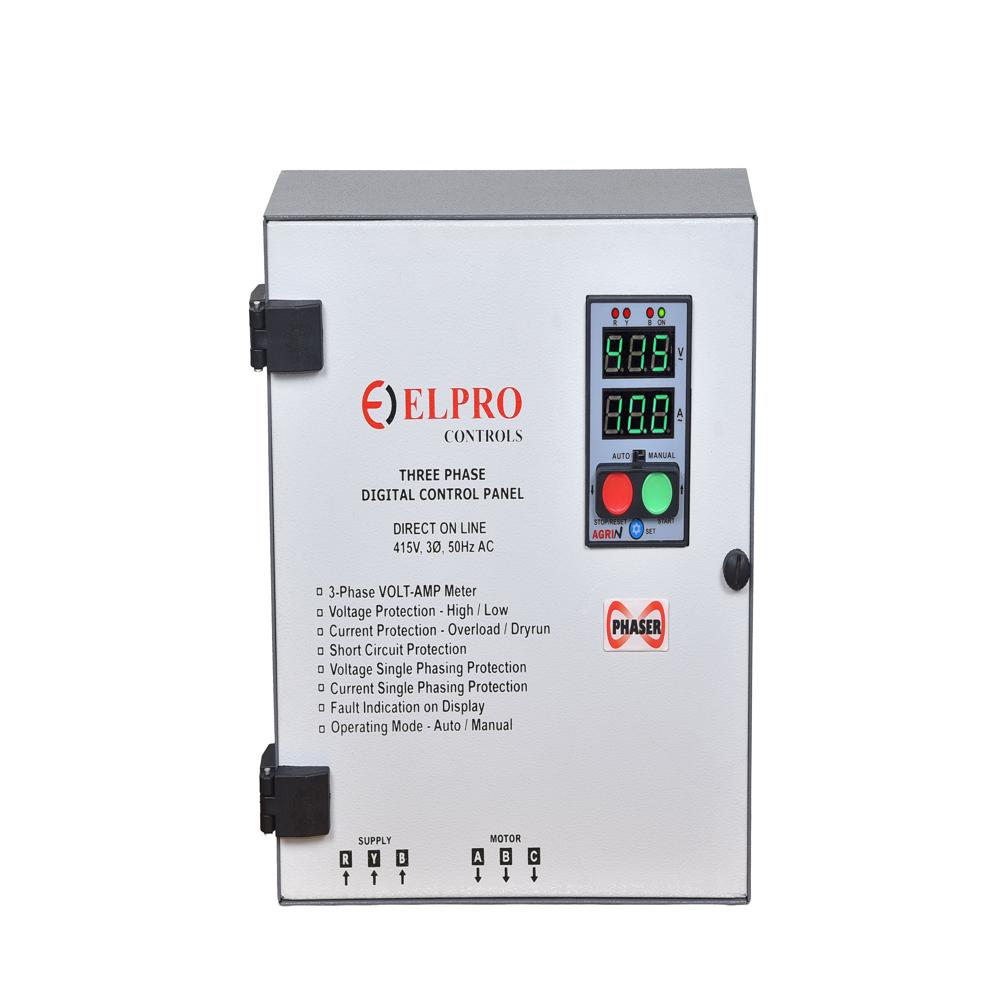

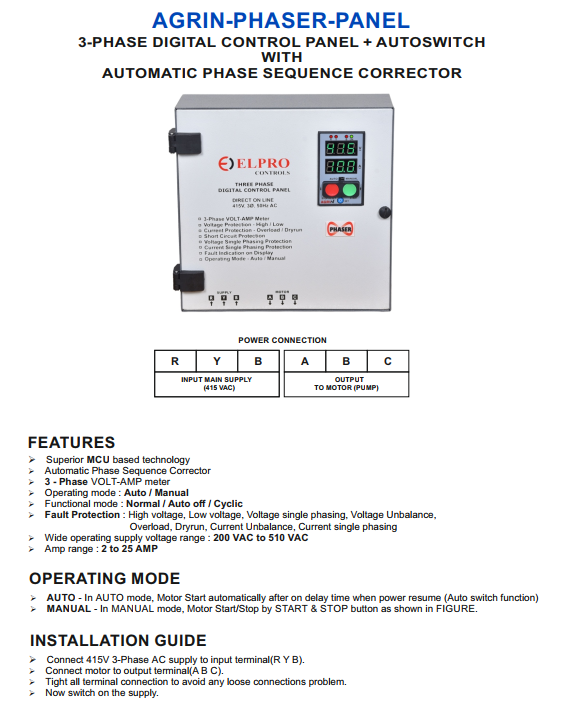

• Application
• Agricultural, Industrial and Commercial Automation

• Base Material
• Other

• Cabinet Material
• Powder Coated Sheet Metal

• Components
• Digital Voltmeter, Ammeter, Phase Failure Relay, Phase Sequence corrector, Auto Switch

• Connectivity Type
• Panel Mounted Terminals

• Control System
• Microcontroller Based

• Cooling System
• Natural Air Cooled

• Cover Material
• Other

• Current Rating
• 25 A

• Dimension (L*W*H)
• 400 x 300 x 150 mm Millimeter (mm)

• Display Type
• Digital

• Features
• Phase sequence Corrector & phase failure protection, automatic switching, overload protection, Short circuit protection, Dry run protection

• Frequency
• 50 Hertz (HZ)

• Frequency (MHz)
• 50 Hz Hertz (HZ)

• Material
• Sheet Metal Powder Coated

• Maximum Output Current
• 25A Ampere (amp)

• Operating Temperature
• 0 to 55 Celsius (oC)

• Operating Voltage
• 415V AC Volt (V)

• Panel Type
• Digital

• Phase
• 3

• Product Type
• Electric Panel

• Protection Level
• Other

• Rated Current
• 25 A Ampere (amp)

• Rated Operation Voltage
• 200 TO 510VAC

• Rated Voltage
• 415 VAC Volt (V)

• Surface Color
• Other

• Surface Finish
• Powder Coated

• Thickness
• 22 Gauge

• Usage & Applications
• Water pump, Submersible pump, Induction motor

• Warranty
• 12 Months

• Way
• 3 Way

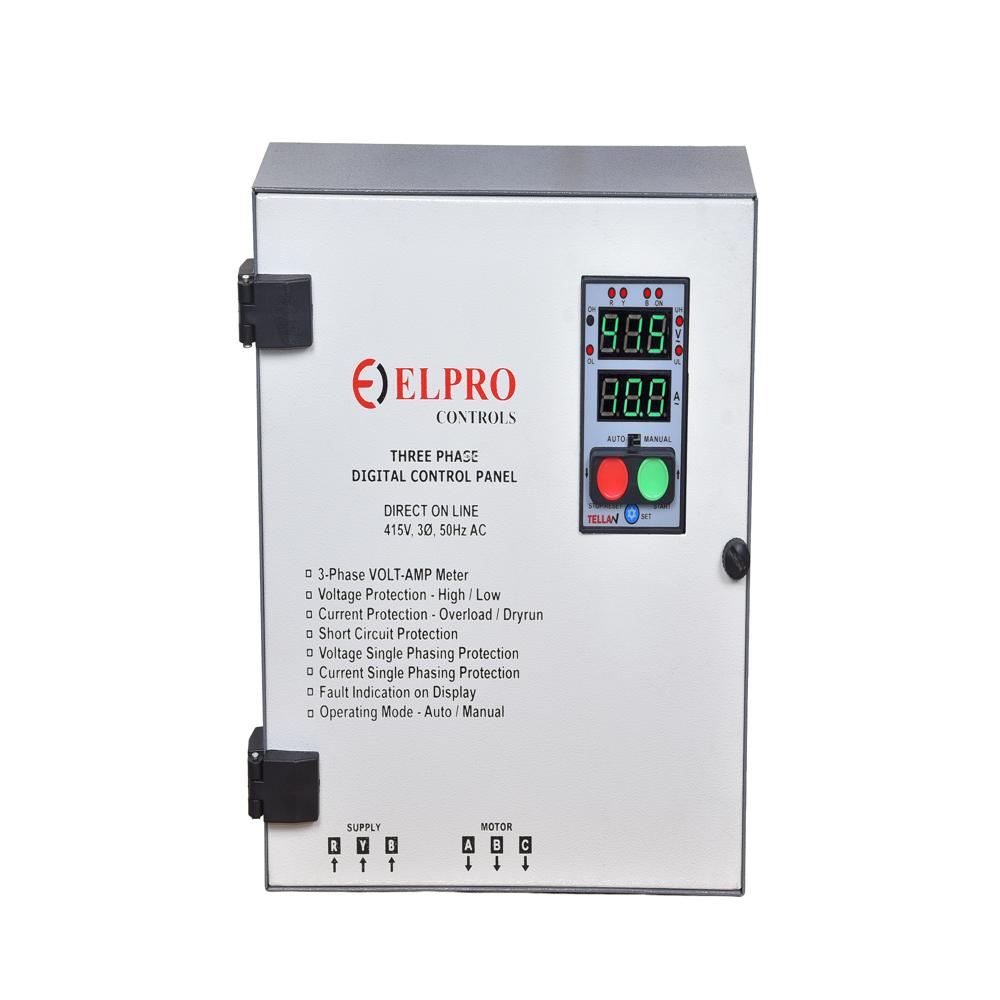

• Application
• Motor/Water Pump Control

• Base Material
• Other

• Cabinet Material
• Powder Coated Sheet Metal

• Components
• Contactor, Digital Display, Water Level Controller Module, Indicator Lamps

• Connectivity Type
• Terminal Connection

• Control System
• Digital/Automatic

• Cooling System
• Natural Air Cooling

• Cover Material
• Other

• Current Rating
• 25A

• Dimension (L*W*H)
• 600 x 500 x 200 mm Millimeter (mm)

• Display Type
• Digital

• Features
• Auto/Manual Operation, Overload Protection, Short Circuit Protection, High/Low Voltage Protection

• Frequency
• 50 Hertz (HZ)

• Frequency (MHz)
• 50 Hz Hertz (HZ)

• Material
• Sheet Metal

• Maximum Output Current
• 25A Ampere (amp)

• Operating Temperature
• 0 to 55 Celsius (oC)

• Operating Voltage
• 415 V AC Volt (V)

• Panel Type
• Wall Mounted

• Phase
• Three

• Product Type
• Switchgear

• Protection Level
• Other

• Rated Current
• 25A Ampere (amp)

• Rated Operation Voltage
• 220 to 510 VAC

• Rated Voltage
• 415 V AC Volt (V)

• Surface Color
• Other

• Surface Finish
• Powder Coated

• Thickness
• 22 Gauge

• Usage & Applications
• Water Pump, Borewell Pump, Submersible Pump

• Warranty
• 12 Months

• Way
• 3 Phase

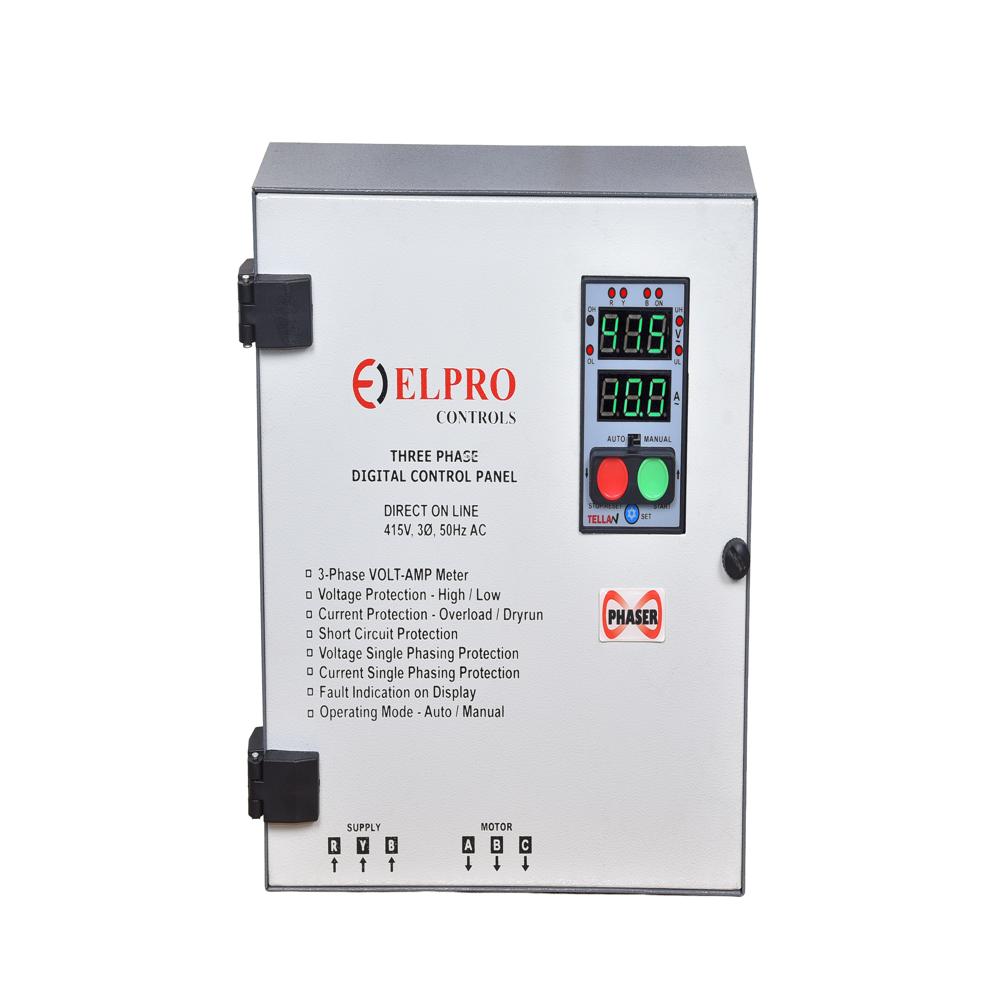

• Application
• Industrial, Commercial Power Management

• Base Material
• Metal Base

• Cabinet Material
• Powder Coated Sheet Metal

• Components
• Digital Display, Water Level controller,

• Connectivity Type
• Panel Mounted Terminals

• Control System
• Digital Microcontroller Based

• Cooling System
• Natural Air Cooling

• Cover Material
• Metal

• Current Rating
• 25A

• Dimension (L*W*H)
• 500mm x 400mm x 200mm Millimeter (mm)

• Display Type
• Digital

• Features
• Automatic Phase Sequence Corrector, Overload Protection, Dryrun Protection, Short circuit Protection

• Frequency
• 50 Hertz (HZ)

• Frequency (MHz)
• 50 Hz Hertz (HZ)

• Material
• Metal

• Maximum Output Current
• 25A Ampere (amp)

• Operating Temperature
• 0 to 55 Celsius (oC)

• Operating Voltage
• 220-510V Volt (V)

• Panel Type
• Digital Control Panel

• Phase
• 3

• Product Type
• Electric Panel

• Protection Level
• Other

• Rated Current
• 25A Ampere (amp)

• Rated Operation Voltage
• 220 to 510 VAC

• Rated Voltage
• 415 VAC Volt (V)

• Surface Color
• Other

• Surface Finish
• Powder Coated

• Thickness
• 22 Gauge

• Usage & Applications
• Automatic Phase Sequence correctio n

• Warranty
• 12 Months

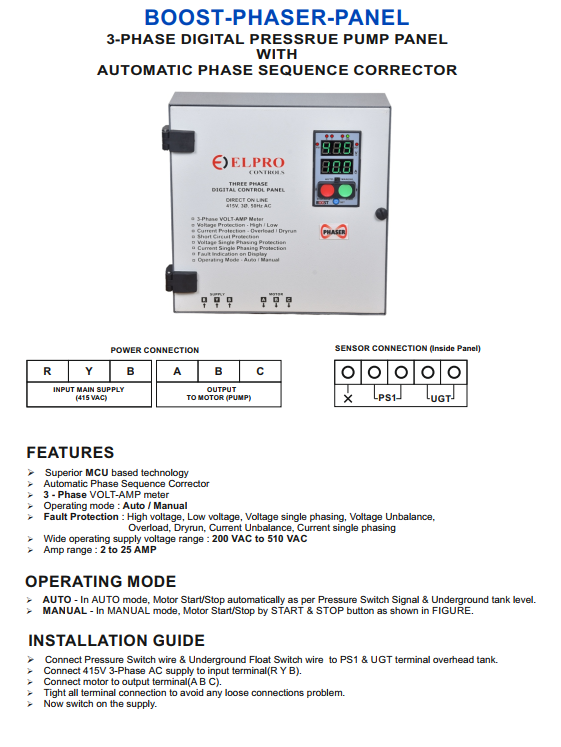

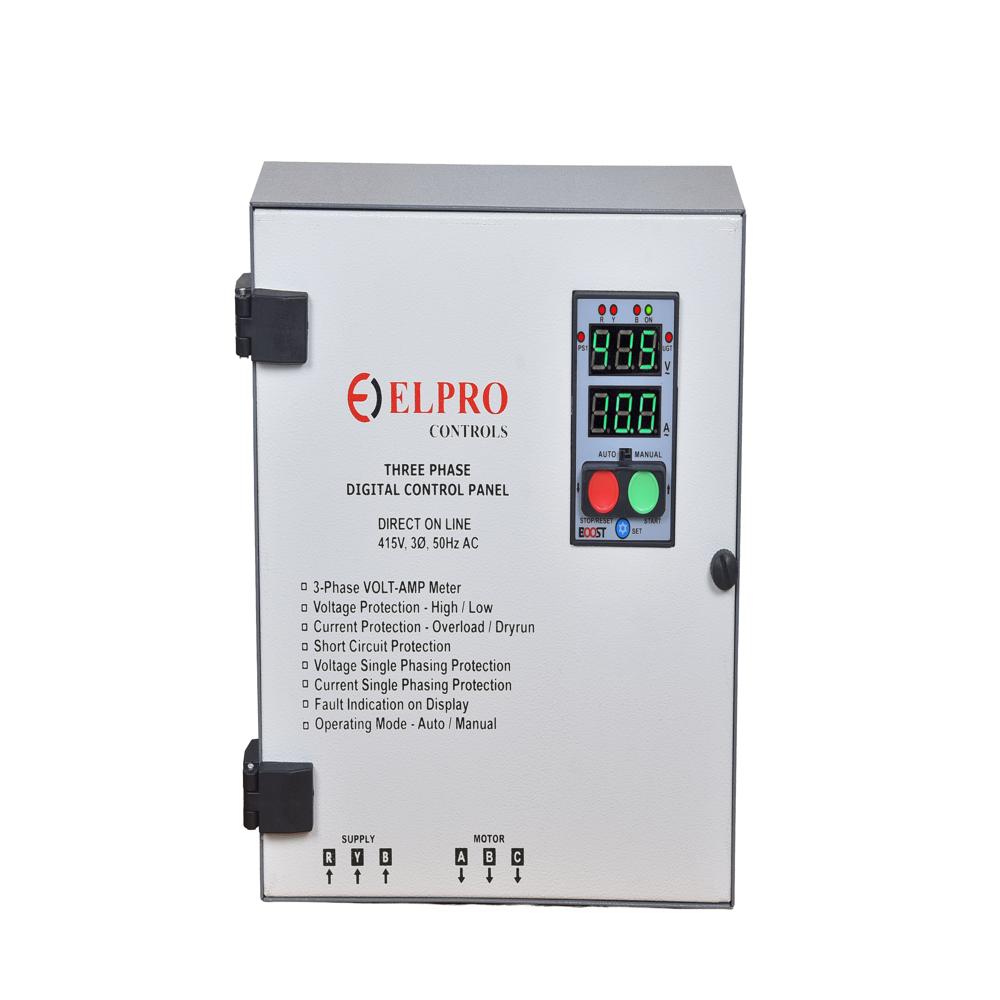

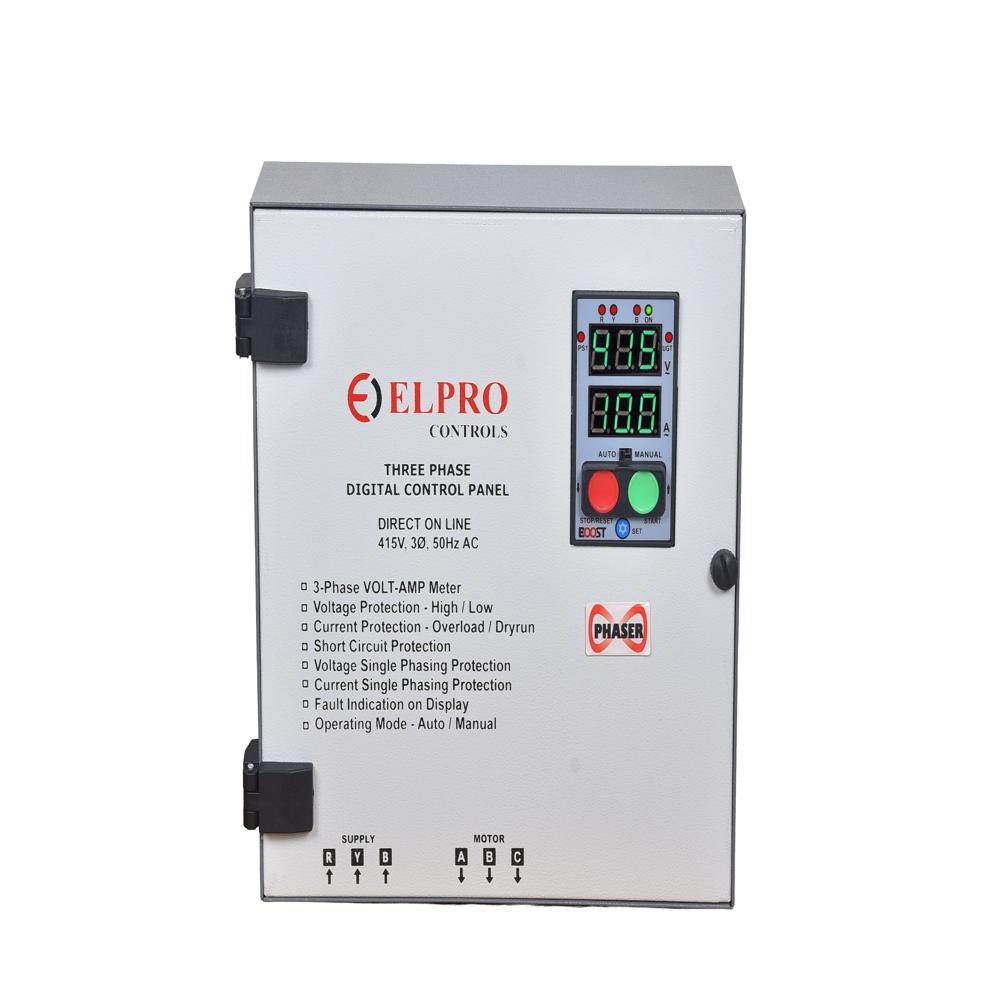

• Application
• Pressure pump, Booster pump, Fire fighting pump

• Base Material
• Metal Base

• Cabinet Material
• Powder coated Sheet Metal

• Components
• Digital Meter, Contactor, Pressure Switch, Float

• Connectivity Type
• Hardwired Terminal

• Control System
• Digital Auto Control

• Cooling System
• Natural Air Cooling

• Cover Material
• Metal

• Current Rating
• 25 Amp

• Dimension (L*W*H)
• 650 x 450 x 220 mm Millimeter (mm)

• Display Type
• Digital

• Features
• Digital Display, Overload Protection, High/Low Voltage Protection, Manual/Auto Switch

• Frequency
• 50 Hertz (HZ)

• Frequency (MHz)
• 50 Hz Hertz (HZ)

• Material
• Sheet Metal

• Maximum Output Current
• 25A Ampere (amp)

• Operating Temperature
• 0 to 55 Celsius (oC)

• Operating Voltage
• 415V AC Volt (V)

• Panel Type
• Pressure Pump Panel

• Phase
• Three

• Product Type
• Switchgear

• Protection Level
• Other

• Rated Current
• 25A Ampere (amp)

• Rated Operation Voltage
• 220 to 510 VAC

• Rated Voltage
• 415 VAC Volt (V)

• Surface Color
• Other

• Surface Finish
• Powder Coated

• Thickness
• 22 Gauge

• Usage & Applications
• Pressure pump, Booster pump, Fire fighting pump

• Warranty
• 12 Months

• Way
• Triple Phase

• Application
• Pressure pump, Booster pump, Fire fighting pump

• Base Material
• Metal Base

• Cabinet Material
• Powder coated Sheet Metal

• Components
• Relay, Contactor, Digital Ammeter/Voltmeter, Pressure Switch, Float

• Connectivity Type
• Terminal Block

• Control System
• Microcontroller Based Digital System

• Cooling System
• Natural Air Cooling

• Cover Material
• Metal

• Current Rating
• 25 Amp

• Dimension (L*W*H)
• 500 x 400 x 200 mm Millimeter (mm)

• Display Type
• Digital

• Features
• Automatic Phase Sequence Corrector, Overload Protection,

• Frequency
• 50 Hertz (HZ)

• Frequency (MHz)
• 50Hz Hertz (HZ)

• Material
• Sheet Metal

• Maximum Output Current
• 25A Ampere (amp)

• Operating Temperature
• 0 to 55 Celsius (oC)

• Operating Voltage
• 220-510V AC Volt (V)

• Panel Type
• Wall Mounted

• Phase
• 3

• Product Type
• Switchgear

• Protection Level
• Other

• Rated Current
• 25A Ampere (amp)

• Rated Operation Voltage
• 220 to 510 VAC

• Rated Voltage
• 415 VAC Volt (V)

• Surface Color
• Other

• Surface Finish
• Powder Coated

• Thickness
• 22 Gauge

• Usage & Applications
• Pressure pump, Booster pump, Fire fighting pump

• Warranty
• 12 Months

• Way
• 3 Way
