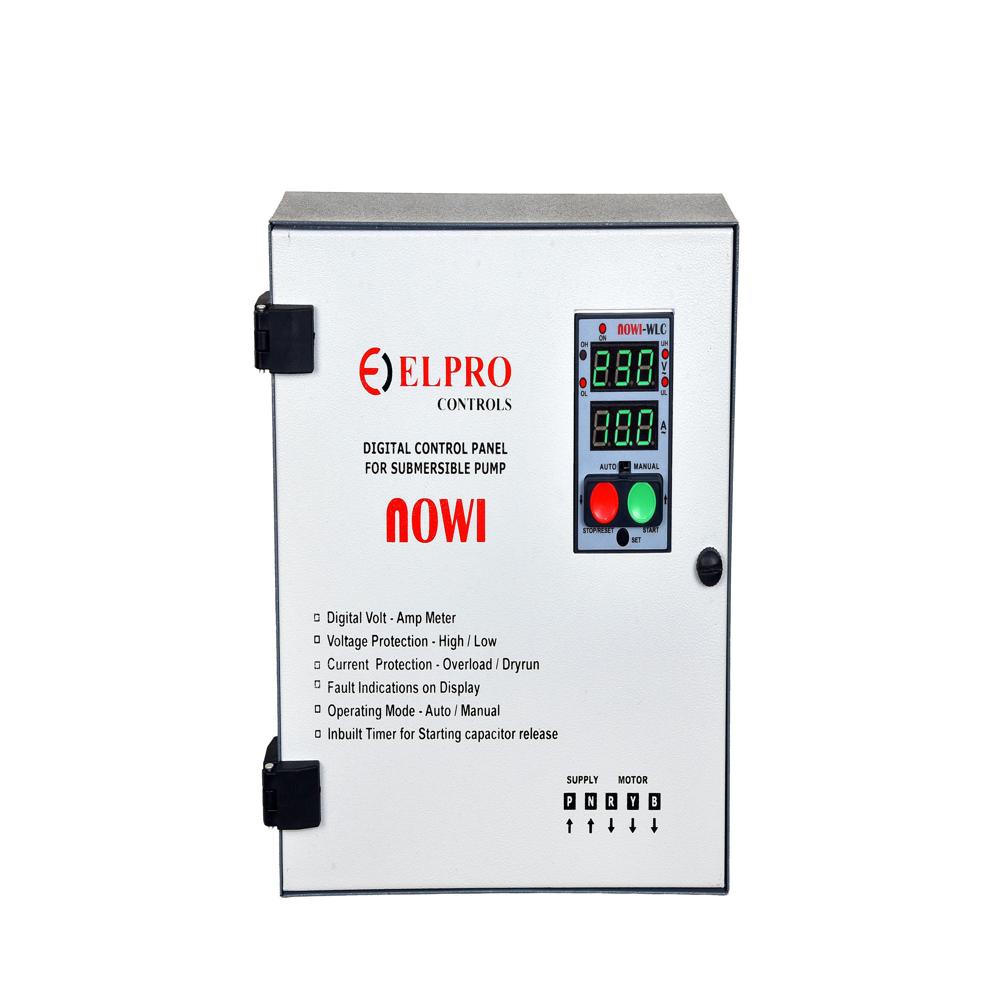

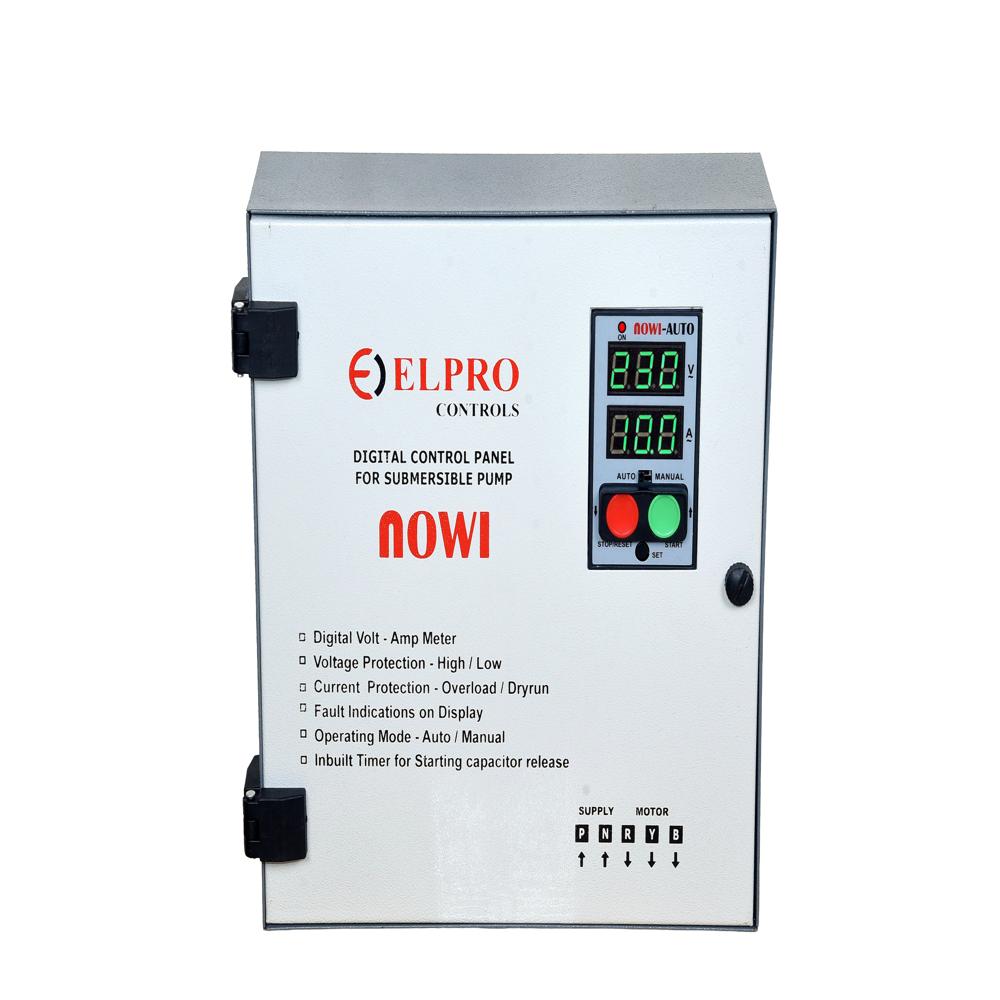

NOWI-WLC : Single Phase Digital Control Panel With Water Level Controller

Product Video

NOWI-WLC : Single Phase Digital Control Panel With Water Level Controller

6400.0 INR/Piece

Get a Price/Quote

Product Details:

Way Single Phase
Cover Material Other
Rated Current 30A Ampere (amp)
Panel Type Wall Mounted
Cabinet Material Sheet Metal, Powder Coated
Thickness 22 Gauge
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

NOWI-WLC : Single Phase Digital Control Panel With Water Level Controller Price And Quantity

Minimum Order Quantity 5 Piece
Price 6400.0 INR/Piece

Relay Contact Output NO/NC, 30A
Input Supply Single Phase, 230V AC
Suitable For Domestic and Commercial Pump Control
Input Connection 1-Phase, L/N
Mounting Type Wall Mount
Operating Temperature 0C to 50C
Indication Lights Power On, Pump Running, Tank Full, Low Voltage
Panel Weight Approx. 6 kg
Enclosure Type Dust & Moisture Proof
Sensor Compatibility Float Sensors, Rod Sensors
Humidity 90% non-condensing

NOWI-WLC : Single Phase Digital Control Panel With Water Level Controller Product Specifications

Application Submersible Pump
Thickness 22 Gauge
Base Material Mild Steel
Rated Operation Voltage 140 to 310 VAC
Warranty 12 Months
Rated Current 30A Ampere (amp)
Cover Material Other
Panel Type Wall Mounted
Way Single Phase
Operating Temperature 0 to 55 Celsius (oC)
Cabinet Material Sheet Metal, Powder Coated
Standard IS standards
Material Mild Steel
Connectivity Type Terminal Block
Components Digital Controller, Indicators, Switches, MCB
Surface Color Other
Maximum Output Current 30A Ampere (amp)
Control System Electronic (Digital) Contactor-based
Product Type Electric Panel
Phase Single
Frequency 50 Hertz (HZ)
Protection Level Other
Usage & Applications Submersible Pump
Operating Voltage 230V AC Volt (V)
Display Type Digital
Cooling System Natural Air Cooling
Current Rating 30A
Surface Finish Powder Coated
Features Automatic Operation, Short Circuit Protection, Overload Protection, Manual/Auto Switch, Tank Full & Dry Run Indications
Dimension (L*W*H) 400mm x 300mm x 170mm Millimeter (mm)
Rated Voltage 230 VAC Volt (V)
Frequency (MHz) 50 Hz Hertz (HZ)

Relay Contact Output NO/NC, 30A
Input Supply Single Phase, 230V AC
Suitable For Domestic and Commercial Pump Control
Input Connection 1-Phase, L/N
Mounting Type Wall Mount
Operating Temperature 0C to 50C
Indication Lights Power On, Pump Running, Tank Full, Low Voltage
Panel Weight Approx. 6 kg
Enclosure Type Dust & Moisture Proof
Sensor Compatibility Float Sensors, Rod Sensors
Humidity 90% non-condensing

NOWI-WLC : Single Phase Digital Control Panel With Water Level Controller Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 500 Piece Per Month
Delivery Time 5 Days
Main Domestic Market All India

Product Description

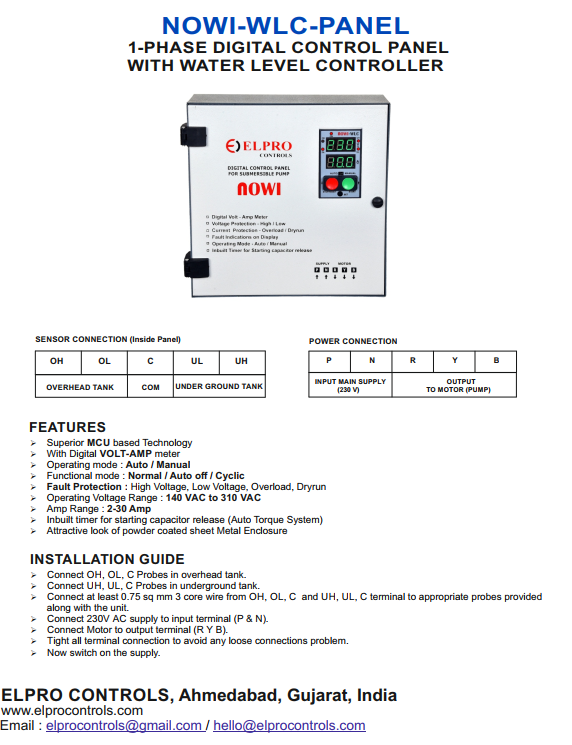

FEATURES

Superior MCU based Technology
With Digital VOLT-AMP meter
Operating mode : Auto / Manual
Functional mode : Normal / Auto off / Cyclic
Fault Protection : High Voltage, Low Voltage, Overload, Dryrun, Short Circuit
Operating Voltage Range : 140 VAC to 310 VAC
Amp Range : 2-30 Amp
Inbuilt timer for starting capacitor release (Auto Torque System)
Attractive powder coated sheet metal enclosure

APPLICATIONS

For Motor Protection in Hotels, Homes, Commercial Complexes & Industries

MODEL	DESCRIPTION
NOWI-WLC-2HP	Run Cap - 72 MFD (EPCOS), Start Cap - 150/200 MFD (EPCOS)
NOWI-WLC-3HP	Run Cap - 100 MFD (EPCOS), Start Cap - 200/250 MFD (EPCOS)

Capitalise on our Discount Offer and secure the Premier Nowi Wlc 1 Phase Digital Control Panel With Wlc-an optimum solution for meritorious control of domestic and commercial water pumps. Equipped with digital controllers, LED indications, and compatibility with float and rod sensors, this panel guarantees uncomplicated and efficient pump management. Its sturdy mild steel body, certified to IS standards, ensures durability and resilience against dust and moisture. Enjoy features like automatic operation, overload and short-circuit protection, and multi-mode switches for peace of mind and convenience. Take advantage now for superior water level control!

Versatile Applications & Direction of Use

The Nowi Wlc 1 Phase Digital Control Panel With Wlc is used for efficient water pump control in both domestic and commercial settings. Designed for wall mounting, the panel operates on single-phase 230V AC input. Connect sensors to monitor and automatically control tank levels, ensuring reliable pump operation. Whether managing water supply in residential complexes or commercial buildings, this system promises precise, automated performance for a variety of general or specific pump control needs.

Reliable Supply & Prompt Delivery

Ask for the latest asking price for the Nowi Wlc 1 Phase Digital Control Panel With Wlc. With stock ready at our Indian facility, we guarantee quick dispatch from the designated FOB port. Our supply ability ensures consistent availability to fulfil large or small orders, and delivery is streamlined for your convenience. Partner with an experienced manufacturer and supplier for trusted, on-time solutions for all your water level control panel requirements.

FAQ's of Nowi Wlc 1 Phase Digital Control Panel With Wlc:

Q: How does the Nowi Wlc 1 Phase Digital Control Panel enhance pump management?

A: The panel uses advanced digital controllers and sensor compatibility to automate water pump operations, reducing manual intervention and optimizing efficiency.

Q: What sensors work with this digital control panel?

A: Both float sensors and rod sensors are compatible, providing flexible solutions for different tank configurations and installation needs.

Q: Where can I install the Nowi Wlc 1 Phase Digital Control Panel?

A: It is suitable for wall mounting in domestic and commercial environments, thanks to its dust and moisture proof enclosure (IP54 rating).

Q: What features improve the safety of this control panel?

A: It offers short-circuit and overload protection, robust relay contact outputs, and clear indication lights for tank status, power, and pump activity.

Q: What is the delivery process and how quickly can I receive my order?

A: With stock ready, your order can be promptly dispatched from our Indian facility. Delivery times are fast, supported by reliable supply chains and quick processing.
