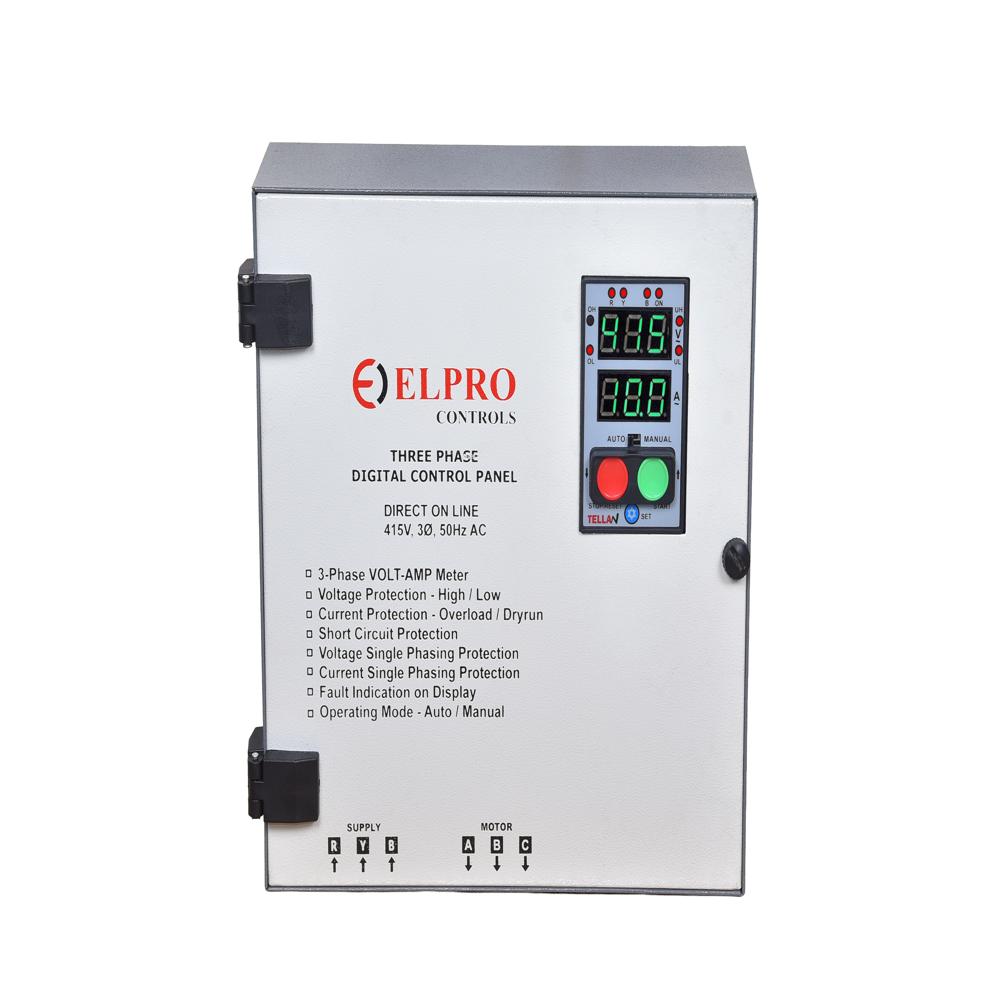

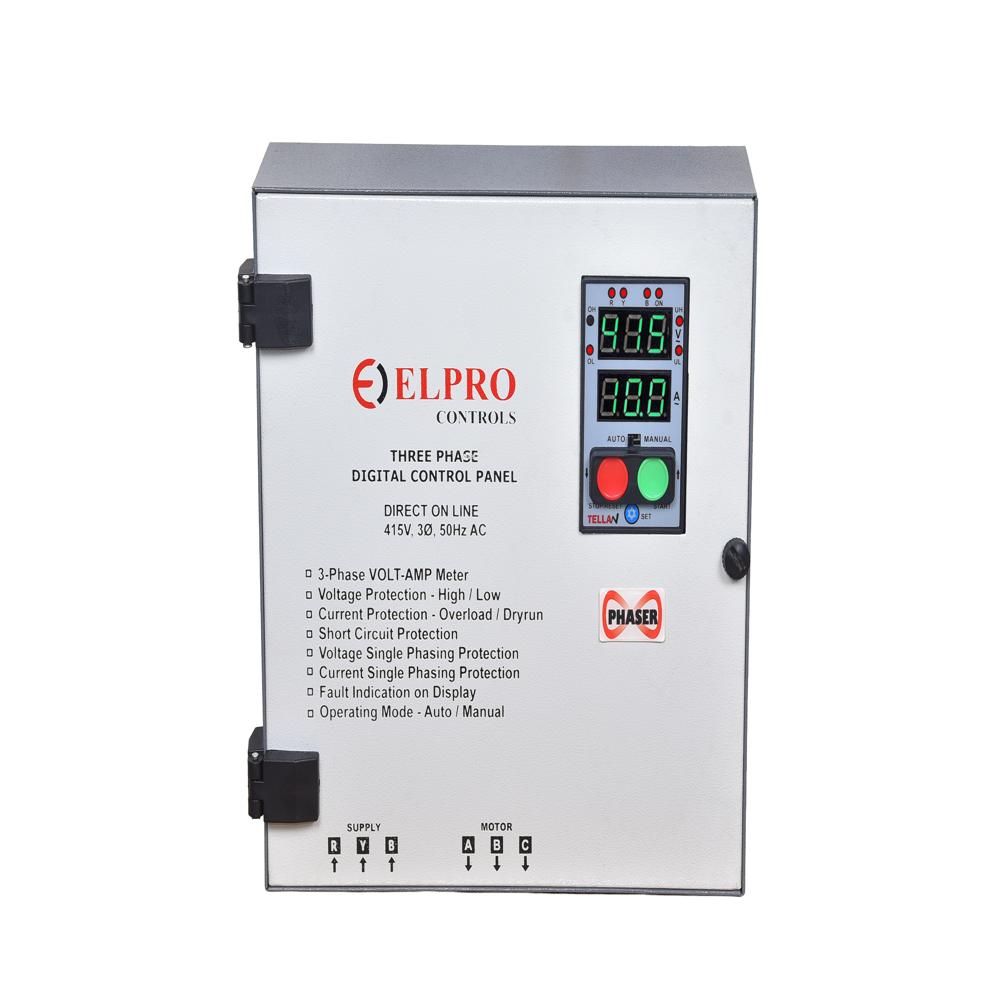

TELLAN-PHASER-PANEL : 3-Phase Digital Control Panel With Water Level Controller
6800.0 INR/Piece
Product Details:
- Operating Voltage 220-510V Volt (V)
- Current Rating 25A
- Components Digital Display, Water Level controller,
- Rated Operation Voltage 220 to 510 VAC
- Control System Digital Microcontroller Based
- Cabinet Material Powder Coated Sheet Metal
- Panel Type Digital Control Panel
- Click to View more
X
TELLAN-PHASER-PANEL : 3-Phase Digital Control Panel With Water Level Controller Price And Quantity
- 5 Piece
- 6800.0 INR/Piece
TELLAN-PHASER-PANEL : 3-Phase Digital Control Panel With Water Level Controller Product Specifications
- 500mm x 400mm x 200mm Millimeter (mm)
- Powder Coated Sheet Metal
- Digital Control Panel
- 12 Months
- Digital Microcontroller Based
- 220 to 510 VAC
- 415 VAC Volt (V)
- 0 to 55 Celsius (oC)
- Digital Display, Water Level controller
- 50 Hz Hertz (HZ)
- 25A Ampere (amp)
- 25A
- 220-510V Volt (V)
- 50 Hertz (HZ)
- Automatic Phase Sequence Corrector, Overload Protection, Dryrun Protection, Short circuit Protection
- Automatic Phase Sequence correctio n
- Metal Base
- 25A Ampere (amp)
- Industrial, Commercial Power Management
- Powder Coated
- Digital
- Metal
- Panel Mounted Terminals
- Electric Panel
- Other
- Metal
- 3
- Natural Air Cooling
- Other
- 22 Gauge
- 230V AC
- Three Phase Four Wire
- Yes (Selector Switch Provided)
- Automatic Switching Among 3 Phases
- Up to 95% RH Non-condensing
- Buzzer & LED
- LED Indicator
- Wall Mounted
- 160-480V AC
- Potential-Free Contact
- -10C to 50C
- Approx. 8 Kg
- Prewired
- Indoor Installation
TELLAN-PHASER-PANEL : 3-Phase Digital Control Panel With Water Level Controller Trade Information
- Cash in Advance (CID)
- 500 Piece Per Month
- 5 Days
- All India
Product Description

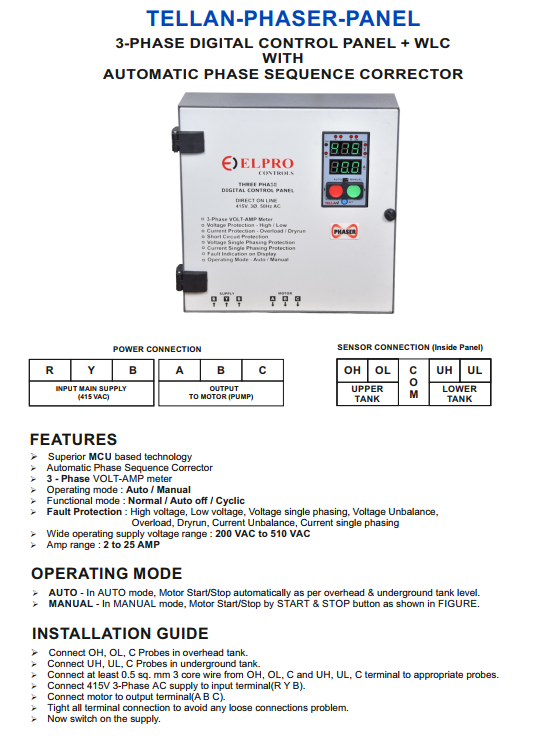

FEATURES
- Superior MCU based technology
- Automatic Phase Sequence Corrector (TELLAN-PHASER)
- 3 - Phase VOLT-AMP meter
- Operating mode : Auto / Manual
- Functional mode : Normal / Auto off / Cyclic
- High Voltage Settable
- Low Voltage Settable
- Overload and Dryrun Trip Time Settable
- Dryrun Reset Time Settable
- Fault Protection : High voltage, Low voltage, Voltage single phasing, Phase Reversal (TELLAN), Voltage Unbalance, Overload, Dryrun, Current Unbalance, Current single phasing, Motor Short Circuit
- Wide operating supply voltage range : 200 VAC to 510 VAC
- Amp range : 2 to 25 AMP
- Attractive powder coated sheet metal enclosure
APPLICATIONS
- For Motor Protection in Hotels, Homes, Commercial Complexes & Industries
|
MODEL |
DESCRIPTION |
|
TELLAN-PANEL |
3-Phase Digital Control P 3-Phase Digital Control Panel with W anel with Water Level Controller, SUPPL ater Level Controller, SUPPLY-415VAC, 2 to 25 AMP |
|
TELLAN-PHASER-PANEL |
TELLAN + Automatic Phase Sequence Corrector |
The Tellan Phaser 3 Phase Digital Control Panel With Auto Switch offers triumphant performance for industrial and commercial power management. Built with an opulent mild steel housing and powder-coated finish, it guarantees durability and sophistication. Its advanced digital microcontroller ensures superb phase indication, automatic switching, and overload protection. This highly recommended panel has garnered favorable reviews for its efficient operation and robust safety features. The user-friendly selector switch and LED display simplify monitoring. Order today to experience streamlined power distribution, backed by IS Standards compliance and Class I protection. Rated for 60A and IP54, it's perfect for reliable, safe installations.
Features, Applications, and Directions for Use
The Tellan Phaser 3 Phase Digital Control Panel With Auto Switch features a digital LED display, automatic and manual switch modes, auto phase change, and overload protection-all inside a robust, powder-coated steel enclosure. It's designed for industrial and commercial power management, offering seamless phase control for indoor installations. To use, simply wall mount the panel, connect your three-phase input, and utilize the auto/manual selector as needed; the digital display and indicators make monitoring effortless.
Domestic Market, Delivery, and Packaging Information
Tellan Phaser panels serve the main domestic market across India. Upon receipt of your purchase order and quotation approval, order processing begins promptly. Delivery time typically ranges from 5 to 10 business days, carefully coordinated to match demand. Packaging is done securely in industrial-grade cartons to ensure safe and damage-free transit. Each panel is meticulously inspected and packed to meet exacting standards, ensuring a smooth installation experience post-delivery.
FAQ's of Tellan Phaser 3 Phase Digital Control Panel With Auto Switch:
Q: How does the auto-switch mechanism benefit industrial power management?
A: The auto-switch mechanism ensures uninterrupted operation by automatically shifting among three phases, maintaining power consistency and protecting equipment during faults or fluctuations.Q: What is the process for installing the Tellan Phaser control panel?
A: Installation involves wall mounting the prewired panel, connecting the three-phase four-wire supply, and configuring settings via the auto/manual selector switch. The LED indicators and digital display aid in monitoring and operation.Q: Where is the ideal operating environment for this digital control panel?
A: The panel is designed for indoor installation in industrial or commercial settings, with an operating temperature range of -10C to 50C and humidity tolerance up to 95% RH non-condensing.Q: What kind of protection and safety features does this panel offer?
A: It provides overload protection, IP54 ingress protection, rated insulation voltage up to 660V, and a buzzer/LED for fault indication, ensuring both equipment and personnel safety.Q: When can customers expect delivery after placing a purchase order?
A: Once you submit your purchase order and finalize the quotation, order processing typically begins immediately, with delivery times ranging from 5 to 10 business days within India.Q: How is the Tellan Phaser panel packaged for shipment?
A: The panel is packaged in robust, industrial-grade cartons with anticipation of safe transit, ensuring it arrives undamaged and ready for installation.Tell us about your requirement
